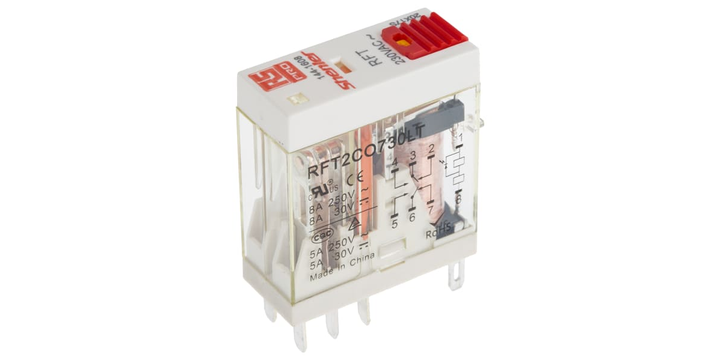

Rs Pro 1441608 Plug in Power Relay, 230V Ac Coil, 8A Switching Current, Dpdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
29 mm
Application
Interface
Mounting Type
Plug In
Depth
12.6 mm
Height
27 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
230 V ac
Standards Met
CE:CQC, CULus
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Terminal Type
PCB Pin
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V dc
Coil Power
530 mW
Coil Resistance
23000 Ohm
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
0.53 W
Switching Current
8 A
Maximum Switching Power AC
1 VA
Number of Poles
2
This spec is not available in the specification table.
Life
10000000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
S$ 15.44
(exc. GST)
S$ 16.83
(inc. GST)
