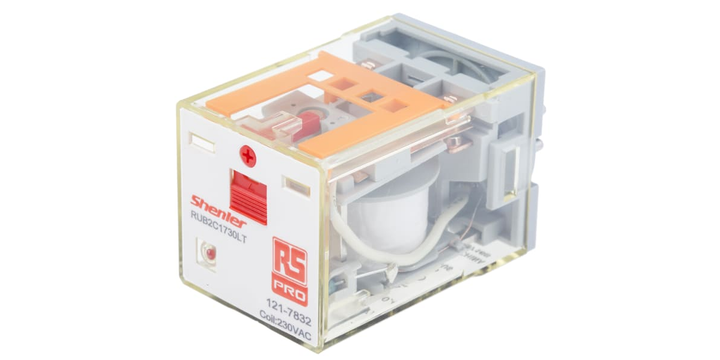

Rs Pro 1217832 Plug in Power Relay, 240V Ac Coil, 10A Switching Current, Dpdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
36 mm
Application
General Purpose
Mounting Type
Plug In
Depth
36 mm
Height
53 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
240 V ac
Standards Met
CE, CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
+55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V ac
Maximum Switching Voltage DC
30 V dc
Coil Power
300 W
Isolation Coil To Contact
2.5 kV ac
Maximum Switching Power DC
1.5 W
Switching Current
10 A
Maximum Switching Power AC
2.7 VA
Number of Poles
2
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
S$ 12.55
(exc. GST)
S$ 13.68
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 12.55 |
