Product Description

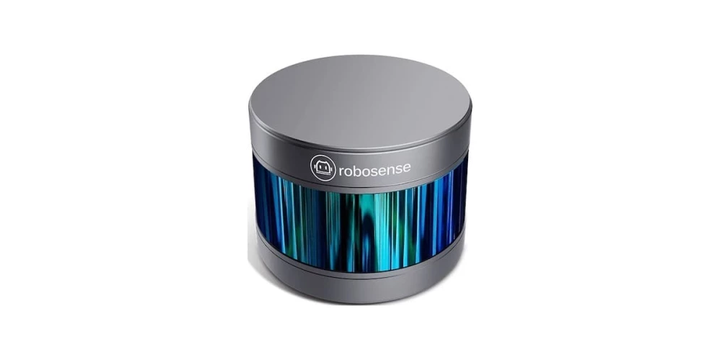

Robosense RS 16 Lidar
Specifications :
- Laser beam: 16 Beams
- Wavelength: 905nm
- Laser class: class 1
- Accuracy: ±2cm（typical)
- Range: 0.2m to 150m
- Data rate: 300，000pts/s
- FOV (vertical): 30°
- Angular resolution（vertical）2.0º
- FOV(horizontal): 360º
- Angular resolution（horizontal）: 5Hz: 0.09º 10Hz: 0.18º 20Hz: 0.36º
- Input voltage: 9-32VDC
- Power consumption: 9w(typical)
- Sensor Protection: IP67
- Operation temperature: -10~60°C
- Dimension: RS-LiDAR-16 V2.0 109mmφ x 82.7mm
- Weight: 0.840kg(without cabling)
S$ 5,998.80
(exc. GST)
S$ 6,538.69
(inc. GST)
