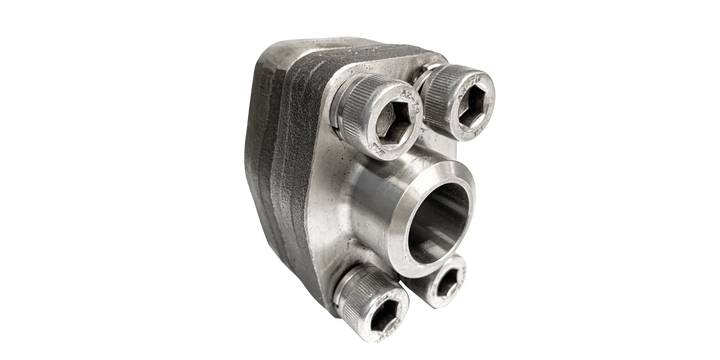

Oleo Tecnica Stainless Steel Sae Flange 3/4" Butt Weld SCH160 Complete Set SAE-S-IT-BW-6-C-06-28-16
Oleo Tecnica Stainless Steel Sae Flange 3/4" Butt Weld SCH160 Complete Set SAE-S-IT-BW-6-C-06-28-16
Brand: | Oleo Tecnica |
Model: | SAE-S-IT-BW-6-C-06-28-16 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
3/4"
Configuration
Complete Set
For Pipe Schedule
SCH160
Material
SS316 Stainless Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Sold with
Screw, O-Ring, and Washer
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M10
This spec is not available in the specification table.
Screw Length
40
mm
This spec is not available in the specification table.
Screw Torque (NM)
70
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Stainless Steel Sae Flange 3/4" Butt Weld SCH160 Complete Set SAE-S-IT-BW-6-C-06-28-16
- Oleo Tecnica Stainless Steel 316 SAE Flange Code 62 6000 PSI, 3/4” Butt Weld SCH160 Complete Set, 4-bolt Flange w/ NBR O-ring & Metric Cap Screws, SAE J518
- 3/4" B/W SCH160 SS316 SAE FLANGE 6000
- A28 B15.6 COMPLETE SET
S$ 102.00
(exc. GST)
S$ 111.18
(inc. GST)
