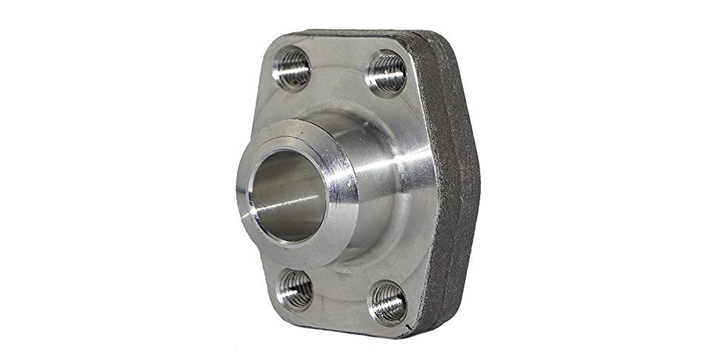

Oleo Tecnica Stainless Steel 316 Sae Flange Butt Weld SCH80 Flat Side, SAE-S-IT-BW-6-F-04-22-13
Oleo Tecnica Stainless Steel 316 Sae Flange Butt Weld SCH80 Flat Side, SAE-S-IT-BW-6-F-04-22-13
Brand: | Oleo Tecnica |
Model: | SAE-S-IT-BW-6-F-04-22-13 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
1/2"
Configuration
Flat Side
For Pipe Schedule
SCH80
Material
SS316 Stainless Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M8
This spec is not available in the specification table.
Screw Length
30
mm
This spec is not available in the specification table.
Screw Torque (NM)
32
This spec is not available in the specification table.
Product Description
Oleo Tecnica Stainless Steel 316 Sae Flange Butt Weld SCH80 Flat Side, SAE-S-IT-BW-6-F-04-22-13
- Oleo Tecnica Stainless Steel 316 SAE Flange Code 62 6000 PSI, 1/2” Butt Weld SCH80 Flat Side, 4-bolt Flange w/ Metric Bolt Thread, SAE J518
- 1/2" B/W SCH80 SS316 SAE FLANGE 6000#
- A22 B13 FLAT SIDE
S$ 34.20
(exc. GST)
S$ 37.28
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 34.20 |
Quantity:
EA
This item is sold by
SG-8088441545
