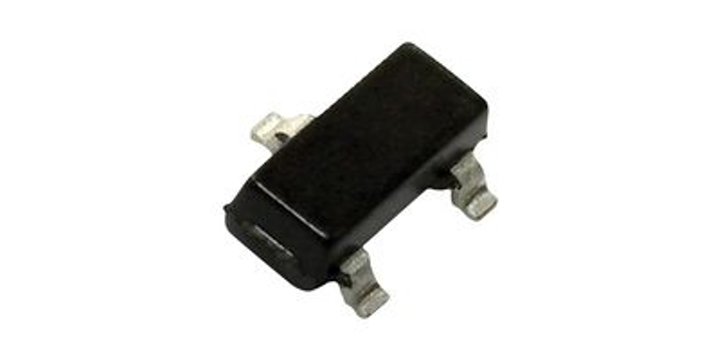

Multicomp Pro BC847B Transistor, Npn, 45V, 100MA, SOT-23
Brand: | MULTICOMP PRO |
Model: | BC847B |
Technical Data Sheets
Specifications
Please select at least one specification below.
Termination Type
Surface Mount Device
Operating Temperature Max
150°C
Transistor Case Style
SOT-23
Collector Emitter Voltage Max
45 V
Power Dissipation
250 mW
DC Current Gain hFE
125 hFE
Transition Frequency
100 MHz
DC Collector Current
100mA
Collector Emitter Saturation Voltage Vce(on)
200 mV
Current Ic hFE
2 mA
Voltage Vcbo
50 V
Gain Bandwidth ft Min
100 MHz
Gain Bandwidth ft Typ
100 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
NPN
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
45 V
This spec is not available in the specification table.
Product Description
S$ 0.45
(exc. GST)
S$ 0.49
(inc. GST)
Quantity:
/ EA
MOQ of 5 EA
Bundle of 5 EA
