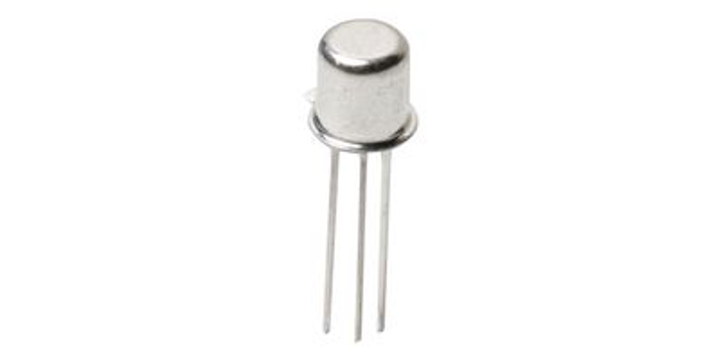

Multicomp Pro 2N2907A Transistor, Pnp, 60V, 0.6A, TO-18
Multicomp Pro 2N2907A Transistor, Pnp, 60V, 0.6A, TO-18
Specifications
infotip-icon
View other Single Bipolar Junction Transistors dimensions or variations
Please select at least one specification below.
Termination Type
Through Hole
Operating Temperature Max
175°C
Transistor Case Style
TO-18
Collector Emitter Voltage Max
60 V
Power Dissipation
400 mW
DC Current Gain hFE
50 hFE
Transition Frequency
200 MHz
DC Collector Current
-600mA
Collector Emitter Saturation Voltage Vce(on)
400 mV
Current Ic hFE
150 mA
Voltage Vcbo
60 V
Gain Bandwidth ft Min
200 MHz
Gain Bandwidth ft Typ
200 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
PNP
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
-60 V
This spec is not available in the specification table.
