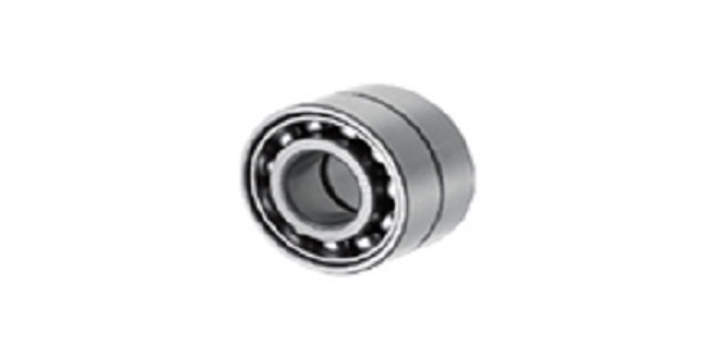

Misumi E-B7012-DF Angular Contact Ball Bearings Double Row Df Combination
Misumi E-B7012-DF Angular Contact Ball Bearings Double Row Df Combination
Brand: | MISUMI |
Model: | E-B7012-DF |
Specifications
Please select at least one specification below.
Bearing Type
Angular Contact Ball (Multi-Row)
Bore Diameter
60 mm
Outside Diameter
95 mm
Width
18 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
900 g
This spec is not available in the specification table.
Environment Specification
Standard
This spec is not available in the specification table.
Load Direction
Radial / Thrust Load, Axial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
51800 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
6200 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 5
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Double Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2 Equiv.
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
56100 N
This spec is not available in the specification table.
Product Description
S$ 50.13
(exc. GST)
S$ 54.64
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 50.13 |
Quantity:
EA
Lead time of 35 working days required.
Item will be ready to dispatch within the lead time specified.
