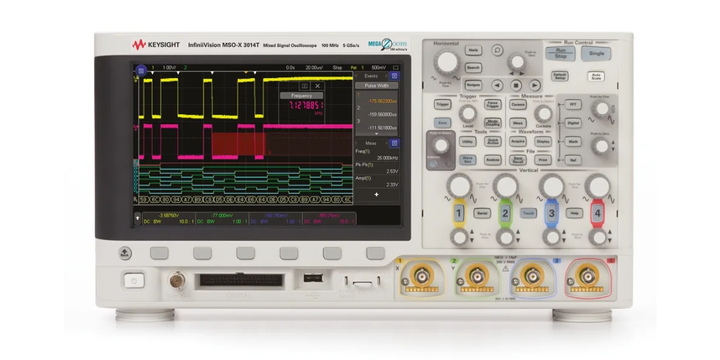

Keysight Technologies MSOX3014A Infiniivision 3000T X Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16

The Keysight Technologies InfiniiVision 3000T X-Series 100MHz mixed-signal oscilloscope offers an extremely intuitive 8.5in capacitive touch user interface with zone touch triggering. This product has 4 analogue and 16 digital channels. It simplifies navigation, facilitates documentation and increases productivity, which enables users to discover and solve challenges quickly with the combination of uncompromised update rate.
Supplied with
N2843A passive probe 500MHz 10:1 attenuation (1 per channel)
Certificate of calibration standard secure erase
Interface and built-in help language support
Documentation CD
Power cord
N2756A 16 digital channel MSO cable (1 per scope on MSO models and DSOXT3MSO only)
Keysight InfiniiVision Series:
Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope
logic analyser
function generator
protocol analyser. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect the investment.

Features and Benefits

Fast uncompromised waveform update rate of 1,000,000wfms/s
Input capacitance is 8pF
Sampling rate is 5GSa/s
Operating temperature ranges between 0oC and 55oC
Isolates signals in seconds with exclusive zone touch triggering
Maximum memory depth is 4Mpts
6-in-1 instrument integration
Time/frequency domain correlation
Easy to touch targets with adaptable interface and pop-up keyboard to document what you discover
Front panel ON/OFF touch button

Applications

Embedded design
Power design
EMI troubleshooting
Education
Manufacturing test/troubleshooting

Certifications

A6J ANSI Z540-1-1994 Calibration
