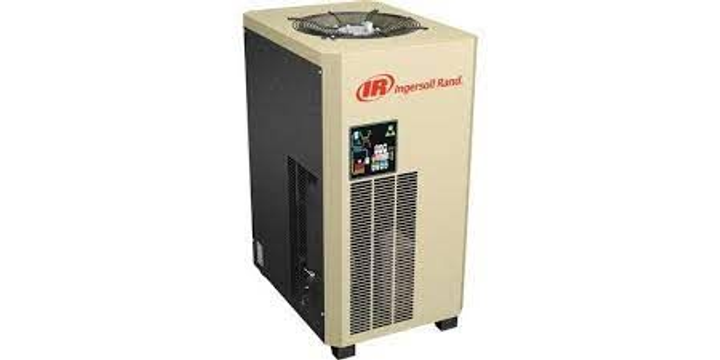

The Ingersoll Rand D Refrigerated Dryer Range unit is a compact, complete and affordable industrial solution. This high capacity unit is designed for large-scale industrial applications and features:
- A full feature, multi-function control panel with multiple alarm displays and energy saving mode for automatic shut off
- Fully adjustable, programmable electronic drain valve to minimize air loss
- Multi-stage filtering that helps remove residual contaminants
- Design features that ensure constant dew point at all load levels
- Satisfies ISO 7183 industry standards
ISO Class 6, 1/2 in NPT, 50°F Dew Point
D Frequency = 60 Hz
Input Voltage = 115V AC
Technical Details
- 25 SCFM (air flow)
- 203 Max PSI
- 115-1-60 voltage
- Weight: 60 pounds
- Dimensions: 16L x 18W x 18H
**LEAD TIME indicated is an estimate only and subject to factory confirmation after order.
