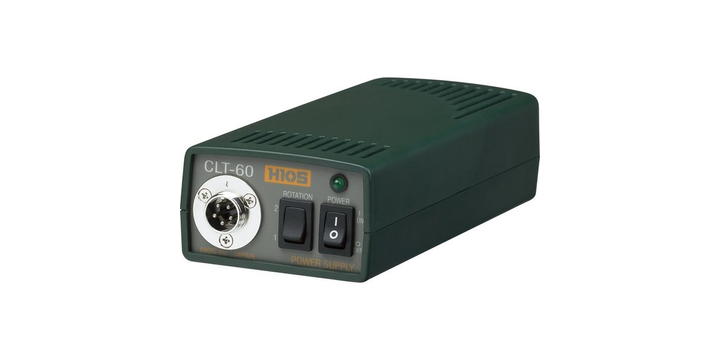

Hios Power Supply CLT-60

Hios Power Supply CLT-60

Brand:	Hios
Model:	CLT-60

Product Description

Hios Power Supply CLT-60

Exclusive power supply is required for DC screwdrivers.

● Exclusive power supply converts the electric current from AC outlet (on the primary side) to low-voltage output (HI: DC30V) or (LOW: about DC20V) to supply it to the screwdriver.
● Safe and quiet rotation.
● Please always use HIOS screwdriver in combination with HIOS power supply for safe screw tightening.
● Stable power supply with multiple inputs (AC100V to 240V).
(Not applicable to CLT-100 and MC-70L)

Specification

Weight(g): 715

Connectable screwdrivers : For one screwdriver

Primary input power source : AC100-240V (47-63Ｈz）

Secondary output voltage : HI(2): DC30V, LOW(1): DC20V (2-step switchable)

External Dimensions(mm) : 88(W)×210(D)×52（Ｈ）ｍｍ

Accessories : Power supply cord 1.8m (1pc), Flat 2P conversion plug (1pc) (only for 100V), Mounting hardware (2pcs), Mounting screws (4pcs)

Plug type : A/A-2/A-3/C/BF/S

Compatible Screwdrivers :

SS series : SS-2000/SS-3000/SS-4000/SS-6500/SS-7000
CL series : CL-2000/CL-3000/CL-4000/CL-6000/CL-6500/CL-7000
α series : α-4500/α-5000/α-6500

S$ 342.00

(exc. GST)

S$ 372.78

(inc. GST)

This product will be active soon.

Lead time of 25 working days required.

Item will be ready to dispatch within the lead time specified.
