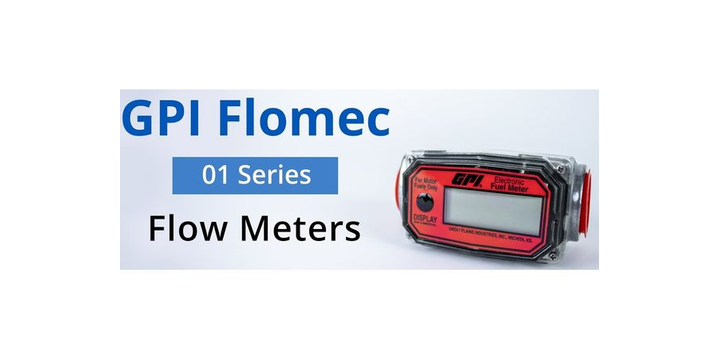

Gpi Flowmeter / Fuel Meter, 1" Bspp, 01 Series, 01A52LM
Technical Data Sheets
Product Description
Part no.: 113255-1
Material: Aluminium, 1" NPT, UOM: Litres
01A Digital Fuel Meter, Litres, BSPP
GPI 113255-1, 01A52LM, 3 – 30 GPM (11 – 113 LPM) flow range, 1 in BSPP thread connection, nylon rotor, ceramic bearings, tungsten carbide shaft, 4-digit LCD display, 14 to 130°F (-10 to 54°C) operating temperature, Aluminum Housing, Digital Display, Two alkaline AAA batteries, Turbine, 300 PSI (20.68 bar) max. pressure, Accuracy +/– 5% of reading
FEATURES
- Compact and lightweight at just 12 oz.
- Mount directly to the nozzle for easy reading
- Batteries included
- Methanol model (01A31GMME) available
SPECIFICATIONS
TECHNOLOGY: Turbine
UNIT OF MEASURE: Litres (11 - 113 LPM)
ACCURACY: 5.0%
MAXIMUM WORKING PRESSURE: 300 PSI (20.7 bar)
OPERATING TEMPERATURE: 14°F TO 130°F (-10°C TO 54°C)
HOUSING, COVER, FITTINGS: Corrosion -Resistant Diecast Aluminum
INLET / OUTLET THREADS: 1 in. BSPP
S$ 310.44
(exc. GST)
S$ 338.38
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 ~ 4 | - | S$ 310.44 |
| 5++ | 20% OFF | S$ 248.35 |
Quantity:
EA
This product will be active soon.
Lead time of 30 working days required.
Item will be ready to dispatch within the lead time specified.
