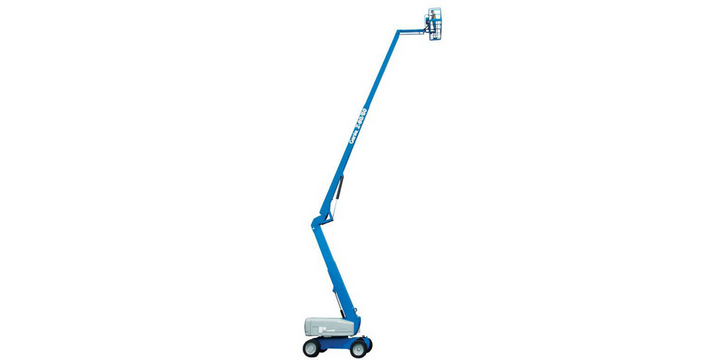

Genie Z-80 Articulated Boom Lift

Dimensions

• Working Height Max.:
• US: 84 ft / 25.77 m
• Platform Height Max.:
• US: 78 ft / 23.77 m
• Horizontal Reach Max.:
• US: 60 ft / 18.29 m
• Below Ground Reach:
• US: 15 ft 10 in / 4.83 m
• Up and Over Clearance Max.:
• US: 29 ft / 8.83 m
• Platform Length (8 ft / 6 ft):
• US: 8 ft / 2 ft 6 in / 2.44 m / 1.83 m
• Platform Width (8 ft / 6 ft):
• US: 9 ft 10 in / 3.00 m
• Height - Stowed:
• US: 37 ft / 11.27 m
• Length - Stowed:
• US: 24 ft 10.5 in / 7.3 m
• Length - Storage/Transport (Jib Tucked Under):
• US: 37 ft / 11.27 m
• Length - Transport:
• US: 8 ft 2 in / 2.49 m
• Width:
• US: 9 ft 4 in / 2.85 m
• Wheelbase:
• US: 12 in / 0.30 m
• Ground Clearance - Center:
• US: 12 in / 0.30 m

Productivity

• Lift Capacity Max. - Unrestricted:
• US: 500 lbs / 227 kg
• Platform Rotation:
• US: 360°
• Jib Length:
• US: 6 ft / 1.83 m
• Vertical Jib Rotation:
• US: 135°
• Turntable Rotation:
• US: 360°
• Drive Speed - Stowed:
• US: 3.0 mph / 4.83 km/h
• Drive Speed - Raised:
• US: 0.68 mph / 1.1 km/h
• Gradeability - Stowed:
• US: 30%
• Tilt Sensor Activation (Front to Back / Side to Side):
• US: 4.5° / 4.5°
• Turning Radius - Inside/Outside:
• US: 14 ft 6 in / 24 ft 6 in

Tires

• Type: 18-625 NHS

Power

• Power Source: Diesel
• Auxiliary Power Unit: 12V DC
• Hydraulic Tank Capacity:
• US: 45 gal / 170 L
• Fuel Tank Capacity:
• US: 35 gal / 132 L

Weight and Floor Loading

• Weight, 2WS:
• US: 37,500 lbs / 17,010 kg
• Weight, 4WS:
• US: 38,000 lbs / 17,237 kg
• Tire Contact Pressure:
• US: 130 psi / 896 kPa
• Occupied Floor Pressure (Tires):
• US: 377 psf / 18.05 kPa

Sound and Vibration Levels

• Sound Pressure Level (Ground Workstation):
• US: 85 dBA
• Sound Pressure Level (Platform Workstation):
• US: 74 dBA
• Vibrations:
• US: < 2.5 m/s²
