The quickest route to efficiency: the BEKOMAT® with service unit (All our Bekomat Drains come with 2 years warranty from date of received photos of correct installation of product)

During compressed air generation and processing, the optimum quality for the application should be achieved. It is important to remove contaminants and humidity from the compressed air as these can lead to quality problems, failures or loss of production.

Condensate discharge without compressed air loss

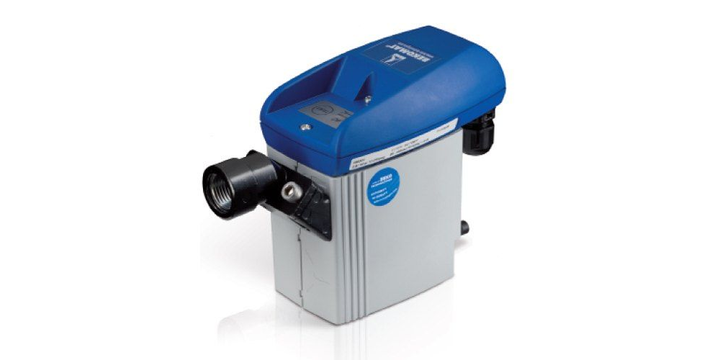

The BEKOMAT® drains off condensate without loss of compressed air, thus reducing energy costs and CO2 emissions. This is made possible by the integrated capacitive sensor, smart electronics for volume-controlled condensate discharge and the proven pilot-controlled solenoid valve.

The BEKOMAT® designed for quick and cost-effective servicing
The innovative design of the BEKOMAT® 31U, 32U, 33U and 33U CO models is optimised for easy handling, installation and maintenance. The devices consist of no more than three assemblies joined together with quick-release connectors. Once installed, the control and sensor unit stays in place as only the service unit (including all wear and pressure parts) needs to be exchanged.

This sturdy condensate drain is suitable for both oil-contaminated and oil-free, aggressive condensate.

No loss of compressed air during draining
-Low operating costs

Outstanding reliability
1.Durable and resistant to dirt 2.Large valve diameters prevent the formation of emulsions ›
3.No delicate mechanical components
4.Suitable for temperatures up to +70 °C ›

Easy to install and virtually maintenance-free
1.Versatile connection options
2.Easy exchange of service unit, even where space is confirmed with even in small areas 3.Servicing requires no installation work

Automated operation and monitoring
1.Ready for integration into modern system monitoring installations
2.Automatic start of self-cleaning process based on dirt particle load
3.Service indicator warns operators in advance when the service unit needs to be replaced

For More Information:

Please refer to Bekomat 31U Brochure in technical data sheets for Technical Performance of Product

Please refer to Bekomat 31U Installation manual in technical data sheets on steps to install Bekomat 31U Auto Drain Valve & Product's Certificate of Conformity
