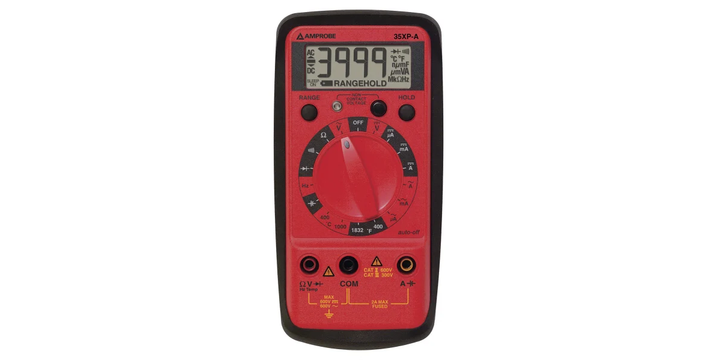

Amprobe 35XPA Handheld Digital Multimeter, 2A Ac Max, 2A Dc Max, 600V Ac Max

• Multimeter Type Handheld
• Display Type Digital
• Model Number p 35XPA
• Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
• Absolute Maximum DC Voltage Measurement 600V dc
• Absolute Maximum Resistance Measurement 40MΩ
• Absolute Maximum DC Current Measurement 2A dc
• Absolute Maximum AC Voltage Measurement 600V ac
• Absolute Maximum AC Current Measurement 2A ac
• Absolute Maximum Capacitance Measurement 4mF
• Absolute Maximum Temperature Measurement +1000°C
• Maximum Frequency 500Hz
• AC Current Measurement Resolution 0.1µA ac
• DC Current Measurement Resolution 0.1µA dc
• AC Voltage Measurement Resolution 100µV ac
• Resistance Measurement Resolution 100mΩ
• DC Voltage Measurement Resolution 100µV dc
• Safety Category Level CAT I, CAT II, CAT III
• Temperature Measurement Resolution 0.1°C
• Capacitance Measurement Resolution 1pF
• Best DC Voltage Accuracy ±0.5% + 1 Digit
• Safety Category Voltage 600V
• Battery Type 9V
• Best Temperature Measurement Accuracy ±3% + 2 °C
• Best Resistance Measurement Accuracy ±2% + 5 Digits
• Length 32mm
• Dimensions 32 x 72 x 155mm
• Best DC Current Accuracy ±2% + 3 Digits
• Weight 400g
• Height 155mm
• Minimum Operating Temperature 0°C
• Best Capacitance Measurement Accuracy ±5% + 15 Digits
• Best AC Voltage Accuracy ±1.5% + 5 Digits
• Maximum Operating Temperature +50°C
• Best AC Current Accuracy ±2.5% + 5 Digits
• Width 72mm

Features and Benefits:

• Compact, multifunction digital multimeter for industrial maintenance, heating/ventilation/air conditioning/refrigeration, electricity and electronic applications
• Automatic ranges for fast measurements
• 4000 point resolution, basic accuracy of 0.5 %
• 750 Vac / 1000 Vdc
• 2A AC/DC, resolution of 0.1 μA for flame detector tests
• Frequency of up to 20 MHz
• Resistance of up to 40 Mohms
• Temperature with type K thermocouple up to 1000 °C
• Capacitance of up to 4000 μF for engine function/start-up tests
• Audible continuity indicator
• Display freeze
• Diode test
• Voldetect™
• Magne-Grip™ case
• Device auto-stop
• Anti-overload/input alarm protection

Standards

1000 V cat.I, 600 V cat.II, 300 cat.III

Supplied with

• Pair of standard test leads
• Carrying case
• Magne-Grip™ holder with hanging strap
• Temperature adapter
• Type K thermocouple probe
• 9 V battery (installed)
• User manual
