3M 558 Connector Idc Red 558

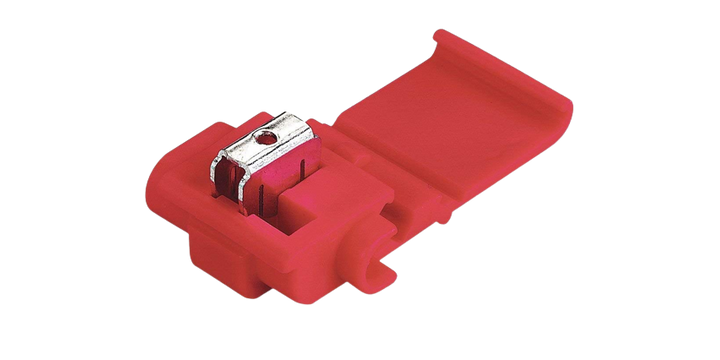

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.
3M™ Scotchlok™ Insulation Displacement Connector 558 is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. The connector withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Highlights
- Red, polypropylene-insulated connector
- Suitable for general purpose electrical connections on an auto, boat, van or trailer
- Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Specification
Product ID : 558
Agency Approvals : UL and CSA
Color : Red
Conductor Sizes : 22 - 16 AWG (Tap)
Connection Type : Run and Tap
Connector Style : Insulation Displacement
Flame Retardant : Yes
Insulation Outer Diameter : 0.120 Inch
Insulation Outer Diameter (metric) : 3.05 mm
Maximum Insulation Outside Diameter : 0.120 in
Maximum Insulation Outside Diameter (metric) : 3.1 mm
Maximum Operating Temperature (Celsius) : 105 Degree Celsius
Maximum Operating Temperature (Fahrenheit) : 221 Degree Fahrenheit
Maximum Recommended Voltage Rating : 600 Volt
Maximum Voltage Rating : 600 V
Maximum Wire Gauge : 16 AWG
Minimum Wire Gauge : 22 AWG
Packaging : Box
Product Family : IDC for Electrical Applications
Recommended Crimping Tool : E-9BM or 9 in. Linemans Pliers
Units per Pallet : 140000 Connector
Harmonizing Code : 8536904000
ECCN : EAR99
