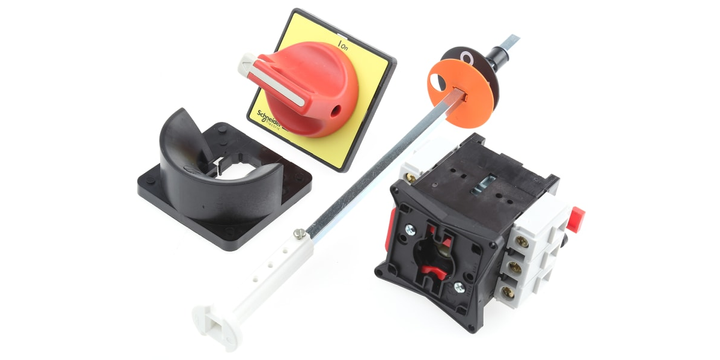

Schneider Electric VCCD2 40A Arus Maksimum, Peringkat Daya 18,5kW, IP20, IP65 - Sakelar Isolator Panel Belakang Tiang 3P

View Brand

Schneider Electric VCCD2 40A Arus Maksimum, Peringkat Daya 18,5kW, IP20, IP65 - Sakelar Isolator Panel Belakang Tiang 3P

Merek:	SCHNEIDER ELECTRIC
Model:	VCCD2

Specifications

View other Isolator Switches dimensions or variations

Range

TeSys

Poles Description

IP Degree of Protection

IP20, IP65

Voltage Rating

690 V ac

Mounting Mode

Rear Panel

handle colour

Red

Series Name

VARIO

Maximum Current

40 A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+50°C

Terminal Type

Screw

Power Rating

18.5 kW

Normal State Configuration

3 NO

Electrical Phase

Accepts Padlocks

Yes

Switch Rating

8 kV

Better World Product

Yes

Better World Verification

Green Premium

Deskripsi Produk

Rp 1.677.589

Kuantitas:

/ EA

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Isolator Switches

50 Items

Range

Acti 9, Compact, ComPact, Kavacha

Poles Description

1, 1P, 2, 2P

Standards

IEC 60947-1 IEC 60947-3, IEC 60947-3, IEC 60947-3 IEC 60947-1

IP Degree of Protection

IP20, IP20, IP40, IP20, IP65, IP40

[Ue] Rated Operational Voltage

125 V DC 500 V AC 50/60 Hz, 125 V DC 690 V AC 50/60 Hz, 500 V AC 50/60 Hz 250 V DC

[Ie] Rated Operational Current

20 A at 250 V AC-22A, 20 A at 440 V AC-22A, 35 A at 440 V AC-22A, 55 A at 440 V AC-22A

Voltage Rating

230 V, 230 V ac, 240 V ac, 240 V, 250 V
