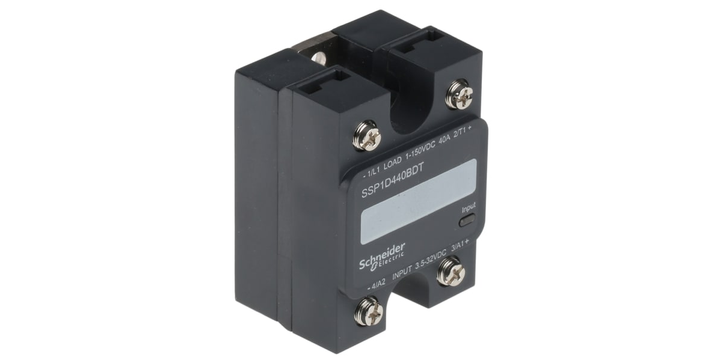

Schneider Electric SSP1D440BDT Harmony Relay Series Solid State Relay, Beban 40 a, Pemasangan Panel, Beban 150 V Dc, Kontrol 32 V Dc

View Brand

Schneider Electric SSP1D440BDT Harmony Relay Series Solid State Relay, Beban 40 a, Pemasangan Panel, Beban 150 V Dc, Kontrol 32 V Dc

Merek:	SCHNEIDER ELECTRIC
Model:	SSP1D440BDT

Specifications

View other Solid State Relays dimensions or variations

Series

Harmony Relay

Mounting Type

Panel Mount

Length

44.5 mm

Depth

34.3 mm

Height

58.9 mm

Operating Temperature Range

-40 → +80°C

Standards Met

CE, CSA, EAC, EN/IEC, REACH, UL

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+80°C

Maximum Load Current

40 A

Maximum Load Voltage

150 V dc

Minimum Load Voltage

1 V dc

Minimum Control Voltage

3.5 V dc

Maximum Control Voltage

32 V dc

Switching Type

Control Voltage Range

3.5 → 32 V dc

Minimum Load Current

0 A

Better World Product

Yes

Better World Verification

Green Premium

Range

Harmony

Number of Poles

Dimensions

44.45 x 34.29 x 58.89mm

Contact Configuration

SPST

Special Features

Green LED for Input Visualization

Terminal Type

Screw

Capacitance

50pF

Relay Type

Solid State Relay

Load Voltage Range

1 → 150V dc

Off State Leakage Current

<= 0.3 mA

Output Device

MOSFET

Maximum Turn On Time

0.1ms

Deskripsi Produk

Rp 1.200.495

Kuantitas:
