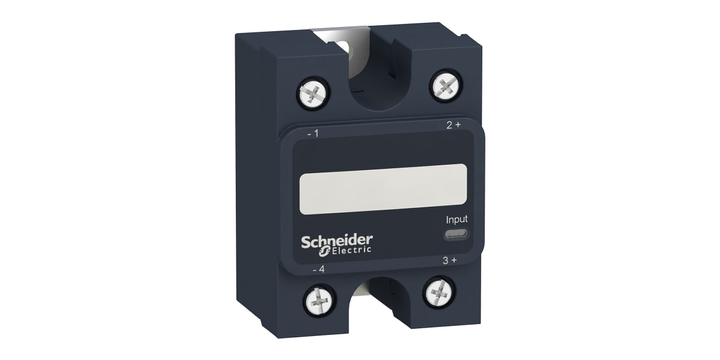

Schneider Electric SSP1A110M7T Harmony Relay Series Solid State Relay, Beban 10 a, Pemasangan Panel, Beban Ac 300 V, Kontrol Ac 280 V
Schneider Electric SSP1A110M7T Harmony Relay Series Solid State Relay, Beban 10 a, Pemasangan Panel, Beban Ac 300 V, Kontrol Ac 280 V
Specifications
infotip-icon
View other Solid State Relays dimensions or variations
Please select at least one specification below.
Series
Harmony Relay
Mounting Type
Panel Mount
Length
44.5 mm
Depth
34.3 mm
Height
58.9 mm
Operating Temperature Range
-40 → +80°C
Standards Met
CE, CSA, EAC, EN/IEC, REACH, UL
Maximum Load Current
10 A
Maximum Load Voltage
300 V ac
Minimum Load Voltage
24 V ac
Minimum Control Voltage
90 V ac
Maximum Control Voltage
280 V ac
Switching Type
Zero Voltage
Control Voltage Range
90 → 280 V ac
Minimum Load Current
0.15 A
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Number of Poles
1
This spec is not available in the specification table.
Dimensions
44.45 x 34.29 x 58.89mm
This spec is not available in the specification table.
Contact Configuration
SPST
This spec is not available in the specification table.
Special Features
Green LED for Input Visualization
This spec is not available in the specification table.
Terminal Type
Screw
This spec is not available in the specification table.
Capacitance
8pF
This spec is not available in the specification table.
Relay Type
Solid State Relay
This spec is not available in the specification table.
Load Voltage Range
24 → 300V ac
This spec is not available in the specification table.
Off State Leakage Current
<= 1 mA
This spec is not available in the specification table.
Output Device
SCR
This spec is not available in the specification table.
Maximum Turn On Time
25ms
This spec is not available in the specification table.
Deskripsi Produk
