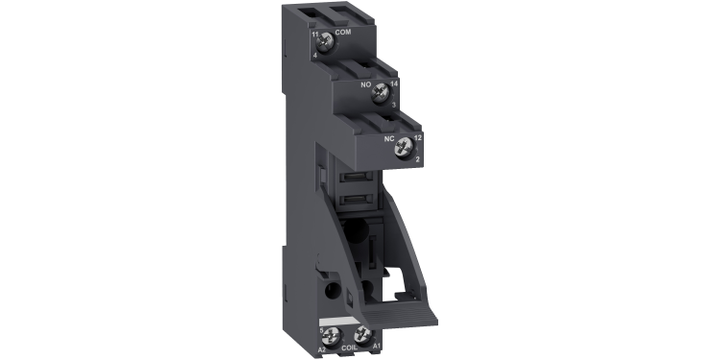

Soket Schneider Electric RGZE1S35M Dengan Penjepit, Relai Elektromekanis Harmoni, untuk Relai RXG1, 10A, Sambungan Sekrup ke Rs, Kontak Terpisah

Soket Schneider Electric RGZE1S35M Dengan Penjepit, Relai Elektromekanis Harmoni, untuk Relai RXG1, 10A, Sambungan Sekrup ke Rs, Kontak Terpisah

Merek:	SCHNEIDER ELECTRIC
Model:	RGZE1S35M

Lembar Data Teknis

Product Datasheet

Environmental disclosure

Specifications

View other Socket Relay dimensions or variations

Standards

UL 508 CSA C22.2 No 14 IEC 61984

[Uimp] Rated Impulse Withstand Voltage

6 kV between coil and contact with reinforced insulation 4 kV between terminals and DIN rail with basic insulation

Connections - Terminals

Screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end

Ip Degree Of Protection

IP20

Pollution Degree

3

Ambient Air Temperature For Operation

-40…70 °C

[Ue] Rated Operational Voltage

250 V conforming to IEC 300 V conforming to UL

Contacts Type And Composition

1 C/O

Range of product

Harmony Electromechanical Relays

[Ui] Rated Insulation Voltage

250 V

Overvoltage Category

III

Relative Humidity

10…85 %

Ambient Air Temperature For Storage

-40…85 °C

Product Certifications

CE EAC UL CSA DNV-GL

Product Compatibility

Plug-in relay RXG with 1 C/O contact

Dielectric Strength

5 kV between coil and contact with reinforced insulation 3 kV between terminals and DIN rail with basic insulation

Contact Terminal Arrangement

Separate

Screw Type

M3

Deskripsi Produk

Rp 71.805

Kuantitas:

EA

This item is sold by

Schneider Electric

Shop by Specification Table

You can find items with similar specifications from the table below.

socket-relay-img

IEC 61984 UL 508, IEC 61984 CSA C22.2 No 14 UL 508, IEC 61984, UL 508 CSA C22.2 No 14 IEC 61984, CSA C22.2 No 14 IEC 61984 UL 508

Connections - Terminals

Screw clamp terminals, 1 x 0.25...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Tightening Torque

< 0.4 N.m for M2.5 screw(s), < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s) < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s), < 1 N.m for M3 screw(s)

[Ue] Rated Operational Voltage

<250 V dc, <250 V, 5 → 24 V dc, 230 V ac/dc, 250 V, 300 V

[Ith] Conventional Free Air Thermal Current

6 A, 7 A, 12 A, 10 A, 16 A
