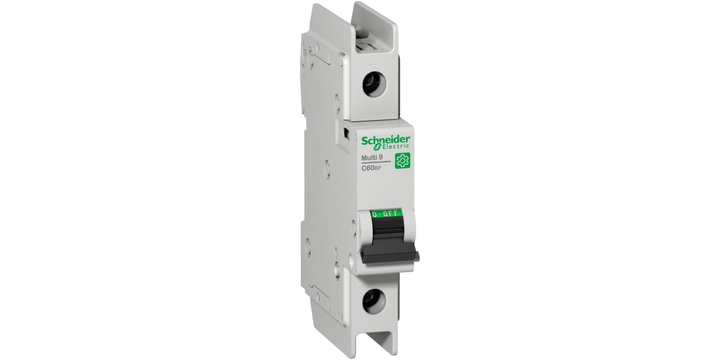

Schneider Electric M9F43110 Multi 9 C60BP Mcb, 1P, 10A Kurva D, 415V Ac, 60V Dc, Kapasitas Putus 20 Ka
Schneider Electric M9F43110 Multi 9 C60BP Mcb, 1P, 10A Kurva D, 415V Ac, 60V Dc, Kapasitas Putus 20 Ka
Merek: | SCHNEIDER ELECTRIC |
Model: | M9F43110 |
Specifications
Please select at least one specification below.
Range
Multi 9
Poles Description
1P
[In] Rated Current
10 A
Breaking Capacity
20 kA
Width
18 mm
This spec is not available in the specification table.
Depth
72 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
C60BP
This spec is not available in the specification table.
Length
103 mm
This spec is not available in the specification table.
Tripping Characteristics
Type D
This spec is not available in the specification table.
Circuit Breaker Type
Residential MCB
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Reset Actuator Type
Toggle Switch
This spec is not available in the specification table.
Rated AC Voltage
415 V
This spec is not available in the specification table.
Rated DC Voltage
60 V
This spec is not available in the specification table.
Deskripsi Produk
Rp 629.177
