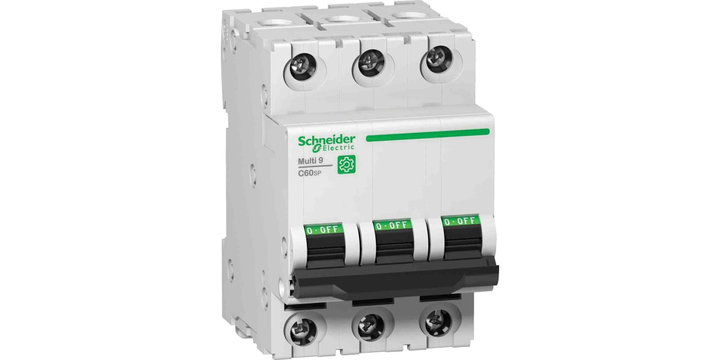

Schneider Electric M9F22325 Multi 9 Mcb, 3P, 25A Curve C, Kapasitas Putus 10 Ka

View Brand

Schneider Electric M9F22325 Multi 9 Mcb, 3P, 25A Curve C, Kapasitas Putus 10 Ka

Merek:	SCHNEIDER ELECTRIC
Model:	M9F22325

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Multi 9

Poles Description

[In] Rated Current

25 A

Breaking Capacity

10 kA

Width

54 mm

Depth

72 mm

Mounting Support

DIN Rail Mount

Length

81 mm

Tripping Characteristics

Type C

Circuit Breaker Type

MCB

Better World Product

Yes

Better World Verification

Green Premium

Tripping Mechanism

Thermal-Magnetic

Deskripsi Produk

Rp 2.959.326
