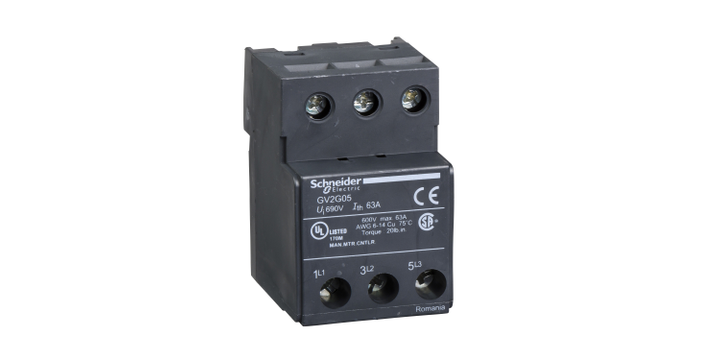

Blok Terminal Schneider Electric GV2G05, tesys Deca & Tesys U, untuk GV1L3 3P
Blok Terminal Schneider Electric GV2G05, tesys Deca & Tesys U, untuk GV1L3 3P
Merek: | SCHNEIDER ELECTRIC |
Model: | GV2G05 |
Specifications
Please select at least one specification below.
Range
Linergy
Poles Description
3P
Tightening Torque
1.7 N.m - on screw clamp terminals
2.2 N.m - on connector
[Ie] Rated Operational Current
63 A
Range Compatibility
TeSys GV2
TeSys Deca
TeSys K
TeSys U
Device Short Name
GV2G
This spec is not available in the specification table.
Product or Component Type
Terminal block
This spec is not available in the specification table.
Product Name
FT
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
690 V conforming to IEC 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals 1 solid AWG 4
Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible with cable end
Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible without cable end
Screw clamp terminals 1 cable(s) 1.5…25 mm² solid
Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible with cable end
Screw clamp terminals 2 cable(s) 1.5…6 mm² solid
Screw clamp terminals 2 cable(s) 2.5…4 mm² flexible without cable end
Screw clamp terminals 1 flexible AWG 4
This spec is not available in the specification table.
IP Degree of Protection
IP20 conforming to IEC 60529
This spec is not available in the specification table.
Accessory / separate part category
Connection accessory
This spec is not available in the specification table.
Mounting location
35 mm DIN rail
This spec is not available in the specification table.
Deskripsi Produk
Rp 469.609
Kuantitas:
/ EA
This item is sold by
Schneider Electric
