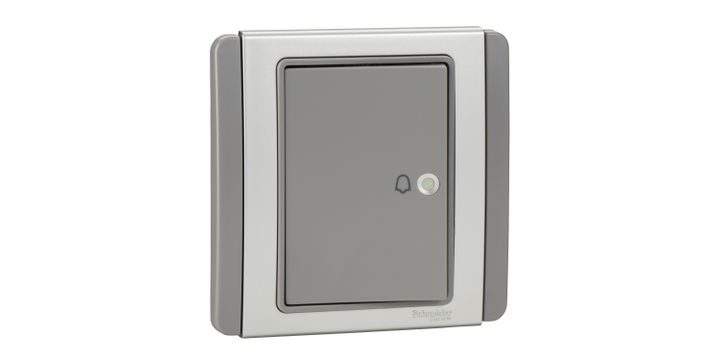

Schneider Electric E3031HBP_GS 4A Sakelar Tekan Bel Horisontal 1 Arah, Abu-abu Perak
Schneider Electric E3031HBP_GS 4A Sakelar Tekan Bel Horisontal 1 Arah, Abu-abu Perak
Merek: | SCHNEIDER ELECTRIC |
Model: | E3031HBP_GS |
Specifications
Please select at least one specification below.
Material
Polycarbonate: plastic part
Standards
EN 60669-1
GB 16915.1
IEC 60669-1
Connections - Terminals
Pillar terminals
Number Of Gangs
1 gang horizontal
Colour Tint
Grey silver
Switch Function
Momentary
Rated Current
4 A at 250 V AC 50/60 Hz
Embedding Depth
23 mm
Clamping Connection Capacity
3 x 2.5 mm² for solid cable(s)
3 x 2.5 mm² for stranded cable(s)
4 x 1.5 mm² for solid cable(s)
4 x 1.5 mm² for stranded cable(s)
Range
Neo
This spec is not available in the specification table.
Relative Humidity
0…95 %
This spec is not available in the specification table.
Ambient Air Temperature For Operation
0…40 °C
This spec is not available in the specification table.
Environmental Characteristic
Indoor use
This spec is not available in the specification table.
Load Type
Resistive
This spec is not available in the specification table.
Switch Application
Bell
This spec is not available in the specification table.
Wiring Device Mounting
Flush
Surface
This spec is not available in the specification table.
Bulb Type
Fluorescent (green)
This spec is not available in the specification table.
Deskripsi Produk
Rp 1.253.544
Kuantitas:
/ EA
