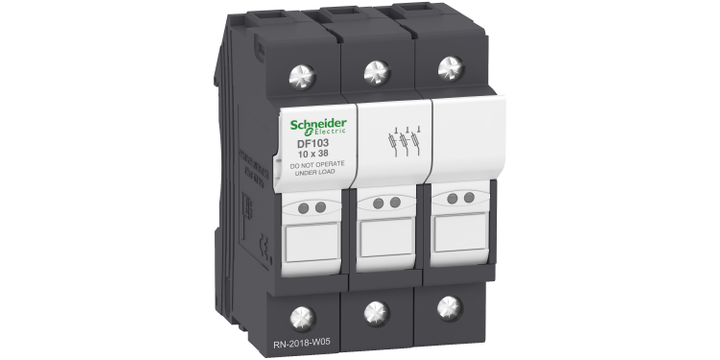

Schneider Electric DF103 Fuse Carrier, Tesys Df, 3P, 32A, 690VAC, Fuse Size 10x38mm

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Product Compatibility: DF2CA Fuse Cartridge, DF2CN Fuse Cartridge

Rated Operational Voltage (Ue): 690 V AC, 690 V DC

Rated Operational Current (Ie): 32 A at 400 V AC

Conventional Free Air Thermal Current (Ith): 32 A at 20 °C

Rated Impulse Withstand Voltage (Uimp): 6 kV

120 kA at 400 V conforming to IEC 60947-3

120 kA at 500 V conforming to IEC 60947-3

Power Dissipation: 3 W maximum power dissipation by fuse

Product Certifications: IEC, UL Recognized, CSA, CCC, EAC, DNV-GL

Mounting Support: 35 mm symmetrical DIN rail

Mounting Position: Vertical (tolerance: +/- 23°)

Screw Clamp Terminals for various cable sizes and types

Tightening Torque: 2.2 N.m - with screwdriver PZ2, 2.2 N.m - with screwdriver flat Ø 5.5 mm

For Operation: -40…70 °C with derating above 20°C

Fire Resistance: 960 °C conforming to IEC 60695-2-1

<h3 class="md-block-header-three">Schneider Electric DF103 Fuse Carrier, Tesys Df, 3P, 32A, 690VAC, Fuse Size 10x38mm</h3>TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).Specifications: <ul class="md-block-unordered-list-item"><li>Range: TeSys</li><li>Product Name: TeSys DF</li><li>Product Type: Fuse Carrier</li><li>Short Name: DF10</li><li>Product Compatibility: DF2CA Fuse Cartridge, DF2CN Fuse Cartridge</li><li>Poles Description: 3P</li><li>Fuse Size: 10 x 38 mm</li><li>Fuse Type: gG, aM</li><li>Control Type: Toggle Padlockable</li><li>Utilisation Category:</li><ul class="md-block-unordered-list-item"><li>AC-20B conforming to IEC 60947-3</li><li>DC-20B conforming to IEC 60947-3</li></ul><li>Rated Operational Voltage (Ue): 690 V AC, 690 V DC</li><li>Rated Operational Current (Ie): 32 A at 400 V AC</li><li>Conventional Free Air Thermal Current (Ith): 32 A at 20 °C</li><li>Rated Insulation Voltage (Ui): 690 V AC</li><li>Rated Impulse Withstand Voltage (Uimp): 6 kV</li><li>Overvoltage Category: III</li><li>Short-Circuit Withstand:</li><ul class="md-block-unordered-list-item"><li>120 kA at 400 V conforming to IEC 60947-3</li><li>120 kA at 500 V conforming to IEC 60947-3</li></ul><li>Power Dissipation: 3 W maximum power dissipation by fuse</li><li>Complementary Features:</li><ul class="md-block-unordered-list-item"><li>Standards:</li><ul class="md-block-unordered-list-item"><li>EN/IEC 60947-3</li><li>EN/IEC 60269-2</li><li>UL 4248-1</li><li>CSA C22.2 No 4248-1</li><li>EN 45545-2: R22 HL2</li></ul><li>Product Certifications: IEC, UL Recognized, CSA, CCC, EAC, DNV-GL</li><li>Mounting Support: 35 mm symmetrical DIN rail</li><li>Mounting Position: Vertical (tolerance: +/- 23°)</li><li>Connections - Terminals:</li><ul class="md-block-unordered-list-item"><li>Screw Clamp Terminals for various cable sizes and types</li></ul><li>Tightening Torque: 2.2 N.m - with screwdriver PZ2, 2.2 N.m - with screwdriver flat Ø 5.5 mm</li><li>Dimensions:</li><ul class="md-block-unordered-list-item"><li>Height: 79.5 mm</li><li>Width: 52.5 mm</li><li>Depth: 61 mm</li></ul><li>Net Weight: 0.126 kg</li><li>Quantity per Set: Set of 4</li></ul><li>Environment:</li><ul class="md-block-unordered-list-item"><li>Ambient Air Temperature:</li><ul class="md-block-unordered-list-item"><li>For Storage: -40…70 °C</li><li>For Operation: -40…70 °C with derating above 20°C</li></ul><li>Operating Altitude: 0...2000 m</li><li>IP Degree of Protection: IP20</li><li>Pollution Degree: 3</li><li>Fire Resistance: 960 °C conforming to IEC 60695-2-1</li><li>Compatibility Code: DF10</li></ul></ul>

<h3>Schneider Electric DF103 Fuse Carrier, Tesys Df, 3P, 32A, 690VAC, Fuse Size 10x38mm</h3>
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Specifications:&nbsp;
<ul>
<li>Range: TeSys</li>
<li>Product Name: TeSys DF</li>
<li>Product Type: Fuse Carrier</li>
<li>Short Name: DF10</li>
<li>Product Compatibility: DF2CA Fuse Cartridge, DF2CN Fuse Cartridge</li>
<li>Poles Description: 3P</li>
<li>Fuse Size: 10 x 38 mm</li>
<li>Fuse Type: gG, aM</li>
<li>Control Type: Toggle Padlockable</li>
<li>Utilisation Category:</li>
<ul>
<li>AC-20B conforming to IEC 60947-3</li>
<li>DC-20B conforming to IEC 60947-3</li>
</ul>
<li>Rated Operational Voltage (Ue): 690 V AC, 690 V DC</li>
<li>Rated Operational Current (Ie): 32 A at 400 V AC</li>
<li>Conventional Free Air Thermal Current (Ith): 32 A at 20 °C</li>
<li>Rated Insulation Voltage (Ui): 690 V AC</li>
<li>Rated Impulse Withstand Voltage (Uimp): 6 kV</li>
<li>Overvoltage Category: III</li>
<li>Short-Circuit Withstand:</li>
<ul>
<li>120 kA at 400 V conforming to IEC 60947-3</li>
<li>120 kA at 500 V conforming to IEC 60947-3</li>
</ul>
<li>Power Dissipation: 3 W maximum power dissipation by fuse</li>
<li>Complementary Features:</li>
<ul>
<li>Standards:</li>
<ul>
<li>EN/IEC 60947-3</li>
<li>EN/IEC 60269-2</li>
<li>UL 4248-1</li>
<li>CSA C22.2 No 4248-1</li>
<li>EN 45545-2: R22 HL2</li>
</ul>
<li>Product Certifications: IEC, UL Recognized, CSA, CCC, EAC, DNV-GL</li>
<li>Mounting Support: 35 mm symmetrical DIN rail</li>
<li>Mounting Position: Vertical (tolerance: +/- 23°)</li>
<li>Connections - Terminals:</li>
<ul>
<li>Screw Clamp Terminals for various cable sizes and types</li>
</ul>
<li>Tightening Torque: 2.2 N.m - with screwdriver PZ2, 2.2 N.m - with screwdriver flat Ø 5.5 mm</li>
<li>Dimensions:</li>
<ul>
<li>Height: 79.5 mm</li>
<li>Width: 52.5 mm</li>
<li>Depth: 61 mm</li>
</ul>
<li>Net Weight: 0.126 kg</li>
<li>Quantity per Set: Set of 4</li>
</ul>
<li>Environment:</li>
<ul>
<li>Ambient Air Temperature:</li>
<ul>
<li>For Storage: -40…70 °C</li>
<li>For Operation: -40…70 °C with derating above 20°C</li>
</ul>
<li>Operating Altitude: 0...2000 m</li>
<li>IP Degree of Protection: IP20</li>
<li>Pollution Degree: 3</li>
<li>Fire Resistance: 960 °C conforming to IEC 60695-2-1</li>
<li>Compatibility Code: DF10</li>
</ul>
</ul>
