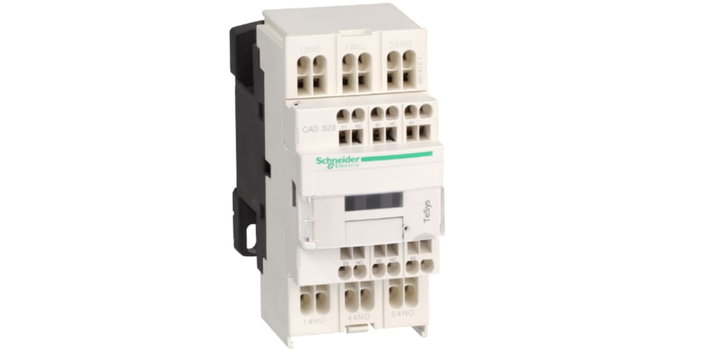

Relai Kontrol Schneider Electric CAD323F7 3NO + 2NC, Peringkat Kontak 10 a, 3PDT, Tesys

View Brand

Relai Kontrol Schneider Electric CAD323F7 3NO + 2NC, Peringkat Kontak 10 a, 3PDT, Tesys

Merek:	SCHNEIDER ELECTRIC
Model:	CAD323F7

Specifications

View other Control Relays dimensions or variations

Contact Current Rating

10 A

Range

TeSys

Better World Product

Yes

Pole Configuration

3PDT

Normal State Configuration

3NO + 2NC

Better World Verification

Green Premium

Deskripsi Produk

Rp 1.026.758

Kuantitas:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Control Relays

37 Items

Utilisation Category

DC-13 AC-15 AC-14, AC-14 AC-15 DC-13, AC-14 DC-13 AC-15, AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1, AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1

Standards

EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1, EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1, IEC 61984, IEC 60255-6, IEC 60255-1

[Ui] Rated Insulation Voltage

690 V conforming to IEC 60947 690 V conforming to VDE 0110 group C 690 V conforming to BS 5424 690 V conforming to UL 508 690 V conforming to CSA C22.2 No 14, 690 V conforming to IEC 60947 750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14, 400 V, 250 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1 400 V conforming to IEC 60664-1

Ip Degree Of Protection

IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529, IP20 conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 IP30 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529

Ambient Air Temperature For Operation

-40…60 °C 60…70 °C with derating, -20…60 °C, -20…50 °C at 60 Hz -20…60 °C at 50 Hz AC/DC, -25…85 °C, -20…50 °C at 60 Hz -20…60 °C at 50 Hz

Mechanical Durability

20 Mcycles, 30 Mcycles, 10 Mcycles, 10000000 cycles, 30000000 cycles

Ambient Air Temperature For Storage

-50…80 °C, -60…80 °C, -50…70 °C, -40…85 °C, -40…70 °C
