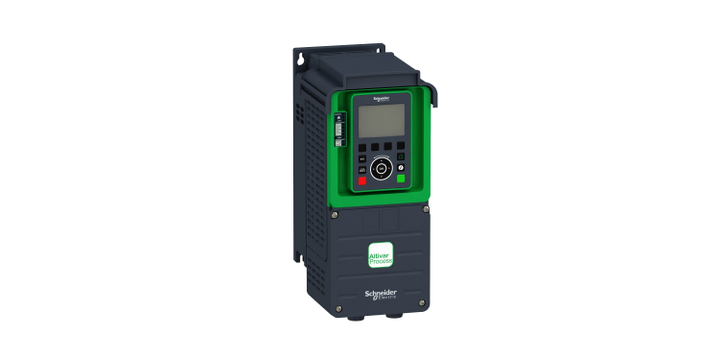

Penggerak Kecepatan Variabel Schneider Electric ATV930U22N4, Proses Altivar ATV900, ATV930, 2.2kW, 400 hingga 480V, Dengan Unit Pengereman, IP21

View Brand

Penggerak Kecepatan Variabel Schneider Electric ATV930U22N4, Proses Altivar ATV900, ATV930, 2.2kW, 400 hingga 480V, Dengan Unit Pengereman, IP21

Merek:	SCHNEIDER ELECTRIC
Model:	ATV930U22N4

Lembar Data Teknis

Product Datasheet

User guide

Catalogue

Environmental disclosure

Specifications

View other Inverter Drives dimensions or variations

Vibration Resistance

1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6

[Us] Rated Supply Voltage

380...480 V - 15...10 %

Local Signalling

3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic

Range of Product

Altivar Process ATV600

Mounting Mode

Wall mount

Accuracy

+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

Standard

IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C

IP Degree of Protection

IP55 conforming to IEC 60529 IP55 conforming to IEC 61800-5-1

Ambient Air Temperature for Operation

40…50 °C (with derating factor) -15…40 °C (without derating)

Ambient Air Temperature for Storage

-40…70 °C

Operating Altitude

1000...4800 m with current derating 1 % per 100 m <= 1000 m without derating

Supply Frequency

50...60 Hz - 5...5 %

Switching Frequency

4...12 kHz with derating factor 2...12 kHz adjustable

Noise Level

52 dB

Transmission Rate

10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Sampling Duration

5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output 2 ms +/- 0.5 ms (DI1...DI4) - discrete input

Continuous Output Current

4 A at 4 kHz for heavy duty 7.2 A at 4 kHz for normal duty

Line Current

3.8 A at 480 V (normal duty) 3.1 A at 380 V (heavy duty) 2.9 A at 480 V (heavy duty) 5.8 A at 380 V (normal duty)

Apparent Power

2.4 kVA at 480 V (heavy duty) 4.2 kVA at 480 V (normal duty)

Maximum Transient Current

6.2 A during 60 s (normal duty) 8.4 A during 60 s (heavy duty)

Maximum Input Current

5.8 A

Linearity Error

AO1, AO2: +/- 0.2 % for analog output AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input

Width

264 mm

Device Short Name

ATV650

Product or Component Type

Variable speed drive

Depth

272 mm

Overvoltage Category

III

Pollution Degree

Relative Humidity

5…95 % without condensation conforming to IEC 60068-2-3

Marking

Analog Input Type

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits

Electromagnetic Compatibility

Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Motor Power kW

2.2 kW (heavy duty) 3.0 kW (normal duty)

Motor Power hp

2 hp heavy duty 3 hp heavy duty

Minimum Switching Current

Relay output R1, R2, R3: 5 mA at 24 V DC

Insulation Resistance

> 1 MOhm 500 V DC for 1 minute to earth

Certifications

ABS UL DNV-GL Bureau Veritas TÜV CSA ATEX zone 2/22

Operating Position

Vertical +/- 10 degree

Product Specific Application

Process and utilities

Shock Resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Protection Type

Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor

Connector Type

RJ45 (on the remote graphic terminal) for Modbus serial RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP

Product Destination

Asynchronous motors Synchronous motors

Output Voltage

<= power supply voltage

Discrete Input Number

Analogue Input Number

Maximum Switching Current

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC

Electrical Connection

Line side: screw terminal 4...6 mm²/AWG 12...AWG10 Motor: screw terminal 4...6 mm²/AWG 12...AWG10 Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16

Network Number of Phases

3 phases

Discrete Input Logic

Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)

Discrete Output Number

Regulation Loop

Adjustable PID regulator

Supply

Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection

Maximum Output Frequency

500 kHz

Physical Interface

Ethernet 2-wire RS 485

Input Compatibility

DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2 DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2

Permissible Temporary Current Boost

1.5 x In during 60 s (heavy duty) 1.1 x In during 60 s (normal duty)

Analogue Output Number

Analogue Output Type

Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA

EMC Filter

Integrated with 50 m conforming to IEC 61800-3 category C2 Integrated with 150 m conforming to IEC 61800-3 category C3

Safety Function

STO (safe torque off) SIL 3

Method of Access

Slave Modbus TCP

Type of Cooling

Forced convection

Communication Port Protocol

Modbus serial Ethernet Modbus serial

Exchange Mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Variant

Standard version

Asynchronous Motor Control Profile

Variable torque standard Optimized torque mode Variable torque standard

Synchronous Motor Control Profile

Synchronous reluctance motor Permanent magnet motor

Nominal Switching Frequency

4 kHz

Prospective Line Isc

50 kA

Discrete Input Type

DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Discrete Output Type

Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA

Relay Output Number

Relay Output Type

Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles

Transmission Frame

RTU

Number of Addresses

1…247 for Modbus serial

Data Format

8 bits, configurable odd, even or no parity

Type of Polarization

No impedance

Acceleration and Deceleration Ramps

Linear adjustable separately from 0.01...9999 s

Motor Slip Compensation

Adjustable Not available in permanent magnet motor law Automatic whatever the load Adjustable

Braking to Standstill

By DC injection

Refresh Time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Isolation

Between power and control terminals

Maximum THDI

<48 % full load conforming to IEC 61000-3-12

Speed Drive Output Frequency

0.1…500 Hz

Option Card

Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1

Frequency Resolution

Analog input: 0.012/50 Hz Display unit: 0.1 Hz

Variable Speed Drive Application Selection

Building - HVAC compressor centrifugal

Motor Power Range AC-3

2.2…3 kW at 380…440 V 3 phases

Enclosure Mounting

Wall mounted

Deskripsi Produk

Rp 29.174.301
