Soft Starter Schneider Electric ATS01N125FT untuk Motor Asinkron, Altistart 01, ATS01, 25A, 110 hingga 480V, 2,2 hingga 11kW

View Brand

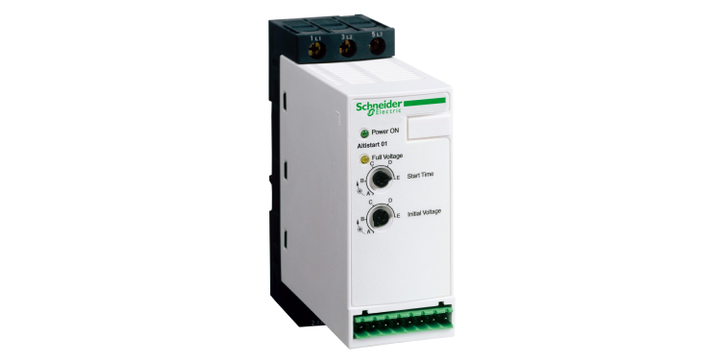

Soft Starter Schneider Electric ATS01N125FT untuk Motor Asinkron, Altistart 01, ATS01, 25A, 110 hingga 480V, 2,2 hingga 11kW

Merek:	SCHNEIDER ELECTRIC
Model:	ATS01N125FT

Lembar Data Teknis

Product Datasheet

Instruction sheet

Catalogue

Specifications

View other Soft Starters dimensions or variations

Range Of Product

Altistart 01

Network Frequency

47.5...63 Hz

Standards

EN/IEC 60947-4-2

Ip Degree Of Protection

IP20

Pollution Degree

2 conforming to EN/IEC 60947-4-2

Relative Humidity

5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

Ambient Air Temperature For Operation

-10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C)

Ambient Air Temperature For Storage

-25…70 °C conforming to EN/IEC 60947-4-2

Motor Power Kw

11 kW, 3 phases at 400 V 3 kW, 3 phases at 230 V 4 kW, 3 phases at 230 V 9 kW, 3 phases at 400 V 7.5 kW, 3 phases at 400 V 5.5 kW, 3 phases at 230 V 2.2 kW, 1 phase at 230 V

Product Certifications

C-Tick CCC GOST CSA UL

Supply Voltage Limits

99…528 V

Supply Frequency

50...60 Hz - 5...5 %

Device Short Name

ATS01

Product Or Component Type

Soft starter

Utilisation Category

AC-53B conforming to EN/IEC 60947-4-2

Compatibility Code

ATS01N1

Operating Altitude

<= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m

Tightening Torque

0.5 N.m 1.9…2.5 N.m

Marking

Electromagnetic Compatibility

Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5

[Uc] Control Circuit Voltage

110 V AC +/- 10 % at 35 mA 24 V AC/DC +/- 10 % at 30 mA 240 V AC +/- 10 % at 80 mA

Motor Power Hp

11 hp, 3 phases at 460 V 2 hp, 3 phases at 210 V 3 hp, 3 phases at 210 V 5 hp, 3 phases at 230 V 9 hp, 3 phases at 460 V 7.5 hp, 3 phases at 230 V

Operating Position

Vertical +/- 10 degree

Product Specific Application

Simple machine

Shock Resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Vibration Resistance

1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

[Us] Rated Supply Voltage

110...480 V - 10...10 %

Product Destination

Asynchronous motors

Output Voltage

<= power supply voltage

Assembly Style

With heat sink

Current Consumption

125 A at nominal load

Electrical Connection

4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Network Number Of Phases

1 phase

Function Available

Integrated bypass

Discrete Output Current

2 A DC-13 3 A AC-15

Power Dissipation In W

1 W at full load and at end of starting 126 W in transient state

Type Of Start

Start with voltage ramp

Motor Power Range Ac-3

2.2…3 kW at 200…240 V 3 phases 2.2…3 kW at 200…240 V 1 phase 4…6 kW at 200…240 V 3 phases 7…11 kW at 200…240 V 3 phases 7…11 kW at 380…440 V 3 phases

Icl Starter Rating

25 A

Starting Time

1 s / 100 5 s / 20 Adjustable from 1 to 5 s

Starting Torque

30...80 % of starting torque of motor connected directly on the line supply

Motor Starter Type

Soft starter
