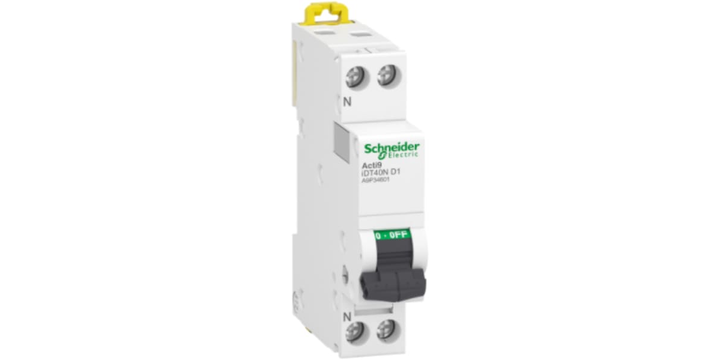

Schneider Electric A9P34601 Acti 9 Acti9 iDT40N Mcb, 1P, 1A Kurva D, 400V Ac

View Brand

Schneider Electric A9P34601 Acti 9 Acti9 iDT40N Mcb, 1P, 1A Kurva D, 400V Ac

Merek:	SCHNEIDER ELECTRIC
Model:	A9P34601

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Acti 9

Poles Description

[In] Rated Current

1 A

Mounting Support

DIN Rail Mount

Series Name

Acti 9 iDT40N

Tripping Characteristics

Type D

Better World Product

Yes

Better World Verification

Green Premium

Rated AC Voltage

400 V

Deskripsi Produk

Rp 2.385.033

Kuantitas:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Miniature Circuit Breakers - MCBs

714 Items

Range

Square D, TeSys, Resi 9, Easy 9, MASTERPACT NW

Poles Description

3P, 2P, 3P+N, 1P+N, 4P

[In] Rated Current

3.5 A, 3.2 kA, 50 A, 125 A, 25 A

Breaking Capacity

15 kA, 30 kA, 3000 A, 50 kA, 15 kA, 30 kA

Standards

EN 60947-2 IEC 60947-2 IEC 60898-1 EN 60898-1, EN/IEC 60898-1, EN/IEC 60947-2 EN/IEC 60898-1, EN 60947-2 EN 60898-1 IEC 60898-1 IEC 60947-2, EN 60898-1 IEC 60898-1 EN 60947-2 IEC 60947-2

Magnetic Tripping Limit

4 x In +/- 20 %, 8 x In +/- 20 %, 3...5 x In, 5...10 x In, 10...14 x In

Connection - Terminals

Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals (downstream) 0.5…35 mm² rigid, Tunnel type terminals (downstream) 0.5…35 mm² rigid Tunnel type terminals (upstream) 0.5…35 mm² rigid Tunnel type terminals (downstream) 0.5…25 mm² flexible Tunnel type terminals (upstream) 0.5…25 mm² flexible Tunnel type terminals (downstream) 0.5…25 mm² flexible with ferrule Tunnel type terminals (upstream) 0.5…25 mm² flexible with ferrule, Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible, Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible
