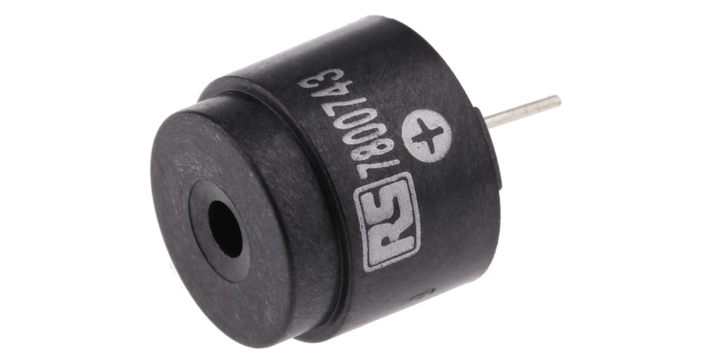

Rs Pro 7800743 85dB Melalui Lubang Piezo Buzzer Eksternal Berkelanjutan, 16 X 11.5mm, 9V Dc Min, 15V Dc Max
Rs Pro 7800743 85dB Melalui Lubang Piezo Buzzer Eksternal Berkelanjutan, 16 X 11.5mm, 9V Dc Min, 15V Dc Max
Merek:
RS Pro
Model:
7800743
Lembar Data Teknis
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Through Hole
Height
11.5 mm
Dimensions
16 x 11.5 mm
Diameter
16 mm
Drive Type
External
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+70°C
Minimum Supply Voltage
9V dc
Maximum Supply Voltage
15V dc
Sound Level
85 dB
Tone Type
Continuous
Maximum Frequency
2.548 kHz
Supply Current
40 mA
Minimum Frequency
1548 Hz
Deskripsi Produk
