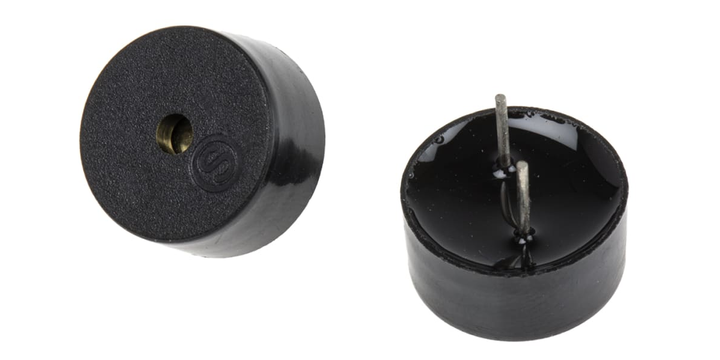

Rs Pro 7716910 85dB Melalui Lubang Gelombang Persegi Eksternal Piezo Buzzer, 12 X 5.5mm, 1V Ac Min, 20V Ac Max

View Brand

Rs Pro 7716910 85dB Melalui Lubang Gelombang Persegi Eksternal Piezo Buzzer, 12 X 5.5mm, 1V Ac Min, 20V Ac Max

Merek:	RS Pro
Model:	7716910

Lembar Data Teknis

RS PRO Datasheet

Specifications

View other Piezo Buzzers dimensions or variations

Mounting Type

Through Hole

Height

5.5 mm

Dimensions

12 x 5.5 mm

Diameter

12 mm

Drive Type

External

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Minimum Supply Voltage

1V ac

Maximum Supply Voltage

20V ac

Sound Level

85 dB

Tone Type

Square Wave

Maximum Frequency

4 kHz

Supply Current

7 mA

Capacitance

12 nF

Deskripsi Produk

Rp 119.940
