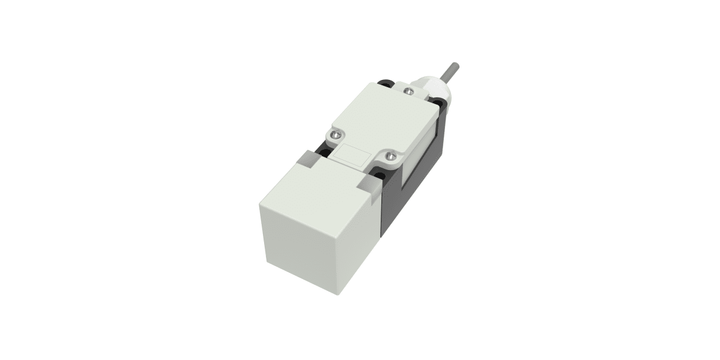

Rs Pro 2522028 Sensor Jarak Gaya Blok Induktif, Deteksi 20 Mm, Output NO/NC, 20 hingga 250 V ac/dc, IP67

View Brand

Rs Pro 2522028 Sensor Jarak Gaya Blok Induktif, Deteksi 20 Mm, Output NO/NC, 20 hingga 250 V ac/dc, IP67

Merek:	RS Pro
Model:	2522028

Lembar Data Teknis

RS PRO Datasheet

Specifications

View other Proximity Sensors dimensions or variations

Width

40 mm

Length

140 mm

Mounting Type

Non-Flush

Depth

40 mm

Body Style

Block

Supply Voltage

20 to 250 V ac/dc

IP Rating

IP67

Maximum Operating Temperature

70°C

Terminal Type

Cable

Switching Frequency

20 Hz AC, 100 Hz DC

Housing Material

PBT

Detection Range

20 mm

Output Type

NO/NC

Sensor Technology

Inductive

Deskripsi Produk

Rp 1.982.555
