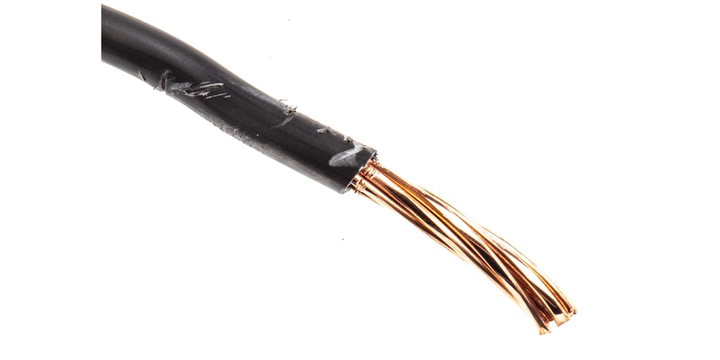

Rs Pro 1853964 Hitam 16 Mm² Kawat Penghubung, 7/1,7 Mm, 100m (1 Gulungan 100 Meter)

View Brand

Rs Pro 1853964 Hitam 16 Mm² Kawat Penghubung, 7/1,7 Mm, 100m (1 Gulungan 100 Meter)

Merek:	RS Pro
Model:	1853964

Lembar Data Teknis

RS PRO Datasheet

Cable Selection Guide

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

450 V dc, 750 V ac

Specification Met

BS EN 60228

Sheath Colour

Black

Outer Diameter

8 mm

Number of Strands

Size of Strands

1.7 mm

Core Strands

7/1.7 mm

Cable Type

Conduit

Cable Shape

Single Core

Insulation Wall Thickness

1 mm

Deskripsi Produk

Rp 8.515.932

Unit	Diskon	Harga Satuan
1	-	Rp 8.515.932
