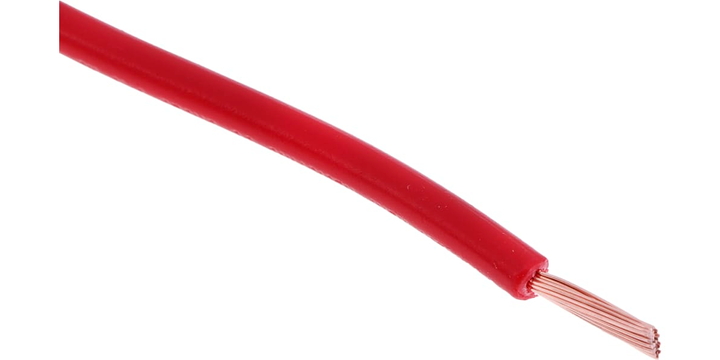

Rs Pro 1805960 Merah 2,5 Mm² Kawat Penghubung, 50/0,25 Mm, 100m (1 Gulungan 100 Meter)

View Brand

Rs Pro 1805960 Merah 2,5 Mm² Kawat Penghubung, 50/0,25 Mm, 100m (1 Gulungan 100 Meter)

Merek:	RS Pro
Model:	1805960

Lembar Data Teknis

RS PRO Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

RS PRO Guide UK

RS PRO Datasheet

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Current Rating

30 A

Voltage Rating

1 kV dc, 600 V ac

Specification Met

BS EN 50265

Sheath Colour

Red

Insulation Material

PVC

Maximum Operating Temperature

+105°C

Outer Diameter

3.7 mm

Number of Strands

Size of Strands

0.25 mm

Conductor Material

Copper

Core Strands

50/0.25 mm

Wire Style

UL1015
