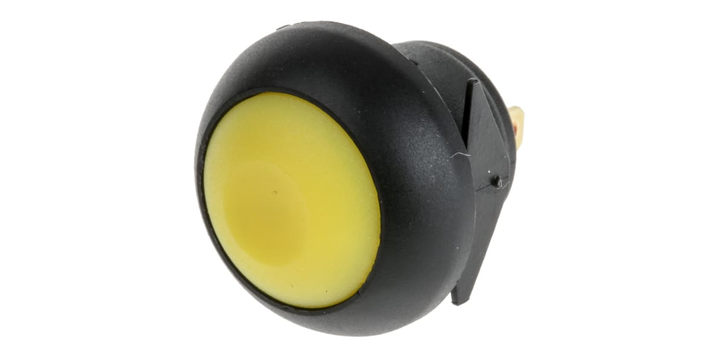

Rs Pro 1444357 Sakelar Tombol Tekan, Sesaat, Dudukan Panel, Dudukan Snap-In, Guntingan 13,6mm, Spst, 32V Ac, IP67
Lembar Data Teknis
Specifications
Please select at least one specification below.
Illuminated
No
Push Button Colour
Yellow
Push Button Style
Flat
Panel Cut Out Diameter
13.6 mm
Mounting Type
Panel Mount, Snap-In Mount
Voltage Rating
32 V AC, 48 V AC, 50 V dc, 125 V AC, 250 V AC
Contact Material
Gold Over Silver (Plated)
Contact Configuration
SPST
IP Rating
IP67
Terminal Type
Solder Lug
Contact AC Voltage Rating
32 V, 48 V, 125 V, 250 V
Switch Operation
Momentary
This spec is not available in the specification table.
Contact Current Rating
100 (50 V DC) mA, 125 (125 V AC) mA, 200 (250 V AC) mA, 200 (50 V DC) mA, 400 (32 V AC) mA, 500 (48 V DC) mA
This spec is not available in the specification table.
Contact DC Voltage Rating
50 V
This spec is not available in the specification table.
Case Colour
Black
This spec is not available in the specification table.
Deskripsi Produk
Rp 36.129
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 36.129 |
