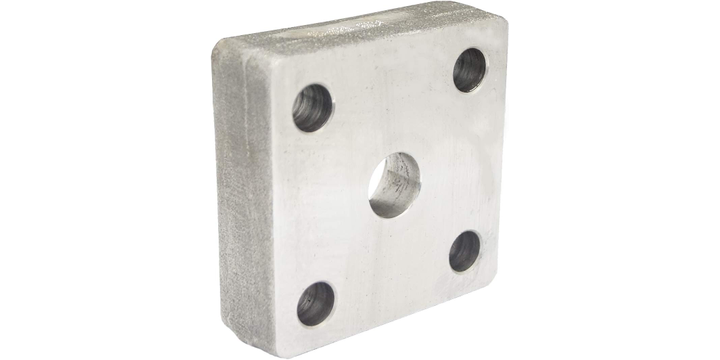

Rfs FL-SQ-H-R-KB-280-20 Kb Type Square Flange Flat Side, 1 1/4" Socket Weld, Carbon Steel Material, Working Pressure up to 280 kg/cm²

This is a flat side square flange of KAB series. Size availability between 1/2" to 2 1/2" with socket weld (weld-in) connection. This square flange is able to withstand maximum pressure up to 280 KGF/CM2 and is made to JIS F7806 standard.

Square flange is used to connect to a plain end pipes or component, allowing a seamless flow of liquid throughout the hydraulic system. It is commonly used in high-pressure connections with small diameter pipes. To create a strong leak proof connection, welding will be done at the recessed part of the flange. A complete set of square flange has 4 components. One flat flange, one O-ring flange, 4 pieces of hexagon or Allen cap screws, and 1 piece of NBR O-ring.

There are 4 types of square flange configurations;

· SHAB is commonly used in the hydraulic industry with a maximum working pressure of 210kg/cm². It is installed with hexagon bolts.

· SSAB has a smaller body than SHAB. It also has a maximum working pressure of 210kg/cm² and it is installed using Allan cap screws.

· KAB flanges are able to withstand higher working pressure up to 280kg/cm² or 350kg/cm², depending on the type. It has a similar configuration method as SHAB.

· Blind square flange is used to terminate the end connection of a fluid flow.

1. Ensure the surface of the flanges are clean.

3. Next, position the flanges & the bolts correspondingly to the holes.

Tighten with a spanner for maximum tightness

<h3 class="md-block-header-three">Rfs FL-SQ-H-R-KB-280-20 Kb Type Square Flange Flat Side, 1 1/4&quot; Socket Weld, Carbon Steel Material, Working Pressure up to 280 kg/cm² </h3>This is a flat side square flange of KAB series. Size availability between 1/2&quot; to 2 1/2&quot; with socket weld (weld-in) connection. This square flange is able to withstand maximum pressure up to 280 KGF/CM2 and is made to JIS F7806 standard. WHAT IS A SQUARE FLANGE?Square flange is used to connect to a plain end pipes or component, allowing a seamless flow of liquid throughout the hydraulic system. It is commonly used in high-pressure connections with small diameter pipes. To create a strong leak proof connection, welding will be done at the recessed part of the flange. A complete set of square flange has 4 components. One flat flange, one O-ring flange, 4 pieces of hexagon or Allen cap screws, and 1 piece of NBR O-ring. WHAT ARE THE AVAILABLE CONFIGURATIONS?There are 4 types of square flange configurations;· SHAB is commonly used in the hydraulic industry with a maximum working pressure of 210kg/cm². It is installed with hexagon bolts. · SSAB has a smaller body than SHAB. It also has a maximum working pressure of 210kg/cm² and it is installed using Allan cap screws. · KAB flanges are able to withstand higher working pressure up to 280kg/cm² or 350kg/cm², depending on the type. It has a similar configuration method as SHAB. · Blind square flange is used to terminate the end connection of a fluid flow.HOW DO I INSTALL SQUARE FLANGE?1. Ensure the surface of the flanges are clean.2. Lubricate the o-ring.3. Next, position the flanges &amp; the bolts correspondingly to the holes.Tighten with a spanner for maximum tightness

<h3>Rfs FL-SQ-H-R-KB-280-20 Kb Type Square Flange Flat Side, 1 1/4" Socket Weld, Carbon Steel Material, Working Pressure up to 280 kg/cm²&nbsp;&nbsp;</h3>
This is a flat side square flange of KAB series. Size availability between 1/2" to 2 1/2" with socket weld (weld-in) connection. This square flange is able to withstand maximum pressure up to 280 KGF/CM2 and is made to JIS F7806 standard.&nbsp;
WHAT IS A SQUARE FLANGE?
Square flange is used to connect to a plain end pipes or component, allowing a seamless flow of liquid throughout the hydraulic system. It is commonly used in high-pressure connections with small diameter pipes. To create a strong leak proof connection, welding will be done at the recessed part of the flange. A complete set of square flange has 4 components. One flat flange, one O-ring flange, 4 pieces of hexagon or Allen cap screws, and 1 piece of NBR O-ring.&nbsp;
WHAT ARE THE AVAILABLE CONFIGURATIONS?
There are 4 types of square flange configurations;
· SHAB is commonly used in the hydraulic industry with a maximum working pressure of 210kg/cm². It is installed with hexagon bolts.&nbsp;
· SSAB has a smaller body than SHAB. It also has a maximum working pressure of 210kg/cm² and it is installed using Allan cap screws.&nbsp;
· KAB flanges are able to withstand higher working pressure up to 280kg/cm² or 350kg/cm², depending on the type. It has a similar configuration method as SHAB.&nbsp;
· Blind square flange is used to terminate the end connection of a fluid flow.
HOW DO I INSTALL SQUARE FLANGE?
1. Ensure the surface of the flanges are clean.
2. Lubricate the o-ring.
3. Next, position the flanges &amp; the bolts correspondingly to the holes.
Tighten with a spanner for maximum tightness&nbsp;
