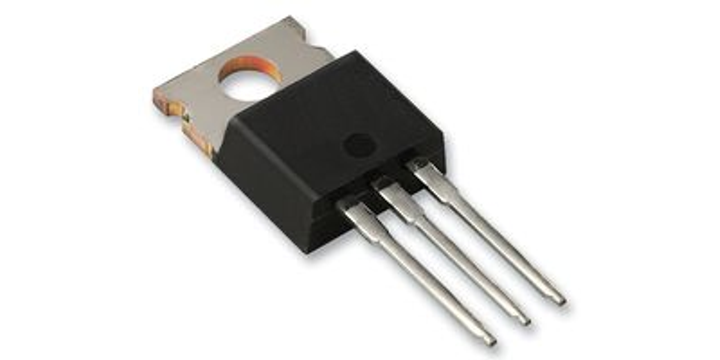

Transistor Multikomp Pro TIP50, Npn, TO-220

View Brand

Transistor Multikomp Pro TIP50, Npn, TO-220

Merek:	MULTICOMP PRO
Model:	TIP50

Lembar Data Teknis

Technical Data Sheet (719.76KB) EN

Specifications

View other Single Bipolar Junction Transistors dimensions or variations

Termination Type

Through Hole

Operating Temperature Min

-65°C

Operating Temperature Max

150°C

Transistor Case Style

TO-220

Collector Emitter Voltage Max

400 V

Power Dissipation

40 W

DC Current Gain hFE

30 hFE

Transition Frequency

10 MHz

DC Collector Current

Collector Emitter Saturation Voltage Vce(on)

1 V

Current Ic hFE

1 A

Voltage Vcbo

500 V

Gain Bandwidth ft Min

10 MHz

Gain Bandwidth ft Typ

10 MHz

RohsCompliant

YES

Transistor Polarity

NPN

No. of Pins

3Pins

Collector Emitter Voltage V(br)ceo

400 V

Deskripsi Produk

Rp 17.815

Lead time diperlukan 5 hari kerja.

Barang akan siap dikirim dalam waktu tenggang yang ditentukan.

Kuantitas:

This item is sold by

SG-7425082168
