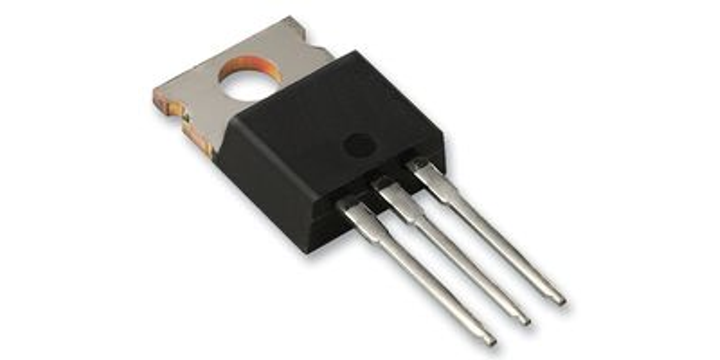

Transistor Multikomp Pro TIP30A, Pnp, TO-220
Transistor Multikomp Pro TIP30A, Pnp, TO-220
| Merek: | MULTICOMP PRO |
| Model: | TIP30A |
Lembar Data Teknis
Specifications
Please select at least one specification below.
Termination Type
Through Hole
Operating Temperature Min
-65°C
Operating Temperature Max
150°C
Transistor Case Style
TO-220
Power Dissipation
30 W
DC Current Gain hFE
40 hFE
Transition Frequency
3 MHz
DC Collector Current
-1A
Collector Emitter Saturation Voltage Vce(on)
-700 mV
Current Ic hFE
200 mA
Voltage Vcbo
60 V
Gain Bandwidth ft Min
3 MHz
Gain Bandwidth ft Typ
3 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
PNP
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
-60 V
This spec is not available in the specification table.
Rp 29.628
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 ~ 9 | - | Rp 29.628 |
| 10 ~ 99 | 42% OFF | Rp 17.076 |
| 100 ~ 499 | 58% OFF | Rp 12.421 |
| 500 ~ 999 | 63% OFF | Rp 11.107 |
| 1000 ~ 4999 | 66% OFF | Rp 10.144 |
| 5000++ | 71% OFF | Rp 8.597 |
Kuantitas:
EA
Stock:
4,021 EA dalam stok
In Seller's Warehouse
Lead time diperlukan 7 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
