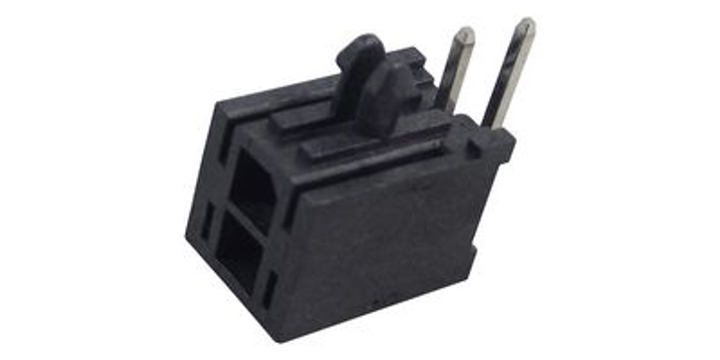

Header Multicomp Pro MC34709, R/ANGLE, 12WAY
| Merek: | MULTICOMP PRO |
| Model: | MC34709 |
Lembar Data Teknis
Specifications
Please select at least one specification below.
Contact Material
Copper Alloy
Contact Plating
Tin Plated Contacts
Contact Termination Type
Through Hole
Operating Temperature Min
-25°C
Operating Temperature Max
105°C
No. of Rows
2 Rows
Connector Systems
Wire-to-Board
Pitch Spacing
3 mm
Insulation Resistance
1000 Mohm
Current Rating
5A
This spec is not available in the specification table.
Contact Resistance
10 mohm
This spec is not available in the specification table.
No. of Contacts
12 Contacts
This spec is not available in the specification table.
Connector Shroud
Shrouded
This spec is not available in the specification table.
Voltage Rating
250 V
This spec is not available in the specification table.
Rp 17.520
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 ~ 24 | - | Rp 17.520 |
| 25 ~ 99 | 17% OFF | Rp 14.542 |
| 100 ~ 149 | 26% OFF | Rp 12.907 |
| 150 ~ 249 | 32% OFF | Rp 11.972 |
| 250 ~ 999 | 35% OFF | Rp 11.432 |
| 1000 ~ 1499 | 37% OFF | Rp 10.994 |
| 1500 ~ 2499 | 40% OFF | Rp 10.439 |
| 2500++ | 42% OFF | Rp 10.191 |
Kuantitas:
EA
Stock:
478 EA dalam stok
In Seller's Warehouse
Lead time diperlukan 7 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
