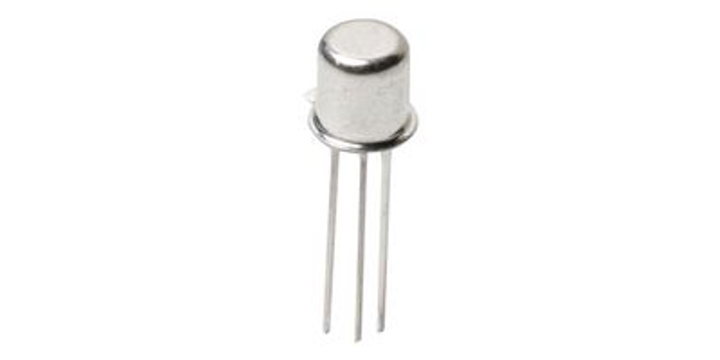

Transistor Multikomp Pro BC107B, Npn, 45V, 0,2A, TO-18
Transistor Multikomp Pro BC107B, Npn, 45V, 0,2A, TO-18
Merek: | MULTICOMP PRO |
Model: | BC107B |
Lembar Data Teknis
Specifications
Please select at least one specification below.
Operating Temperature Min
-65°C
Operating Temperature Max
200°C
Transistor Case Style
TO-18
Collector Emitter Voltage Max
45 V
Power Dissipation
600 mW
DC Current Gain hFE
200 hFE
Transition Frequency
150 MHz
DC Collector Current
100mA
Collector Emitter Saturation Voltage Vce(on)
250 mV
Current Ic hFE
2 mA
Voltage Vcbo
50 V
Gain Bandwidth ft Typ
150 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
NPN
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
45 V
This spec is not available in the specification table.
Deskripsi Produk
