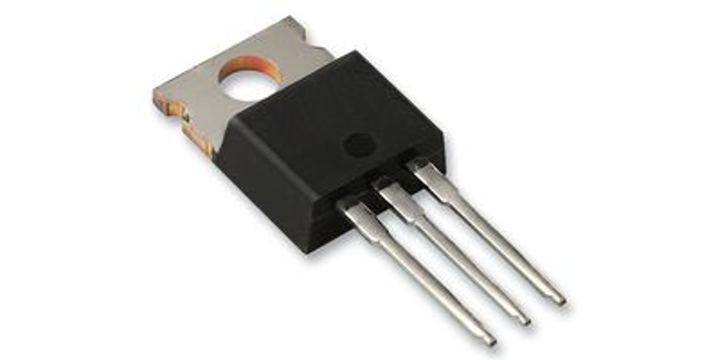

Transistor Multikomp Pro 2N6109, Pnp, TO-220
Transistor Multikomp Pro 2N6109, Pnp, TO-220
Merek: | MULTICOMP PRO |
Model: | 2N6109 |
Lembar Data Teknis
Specifications
Please select at least one specification below.
Termination Type
Through Hole
Operating Temperature Min
-65°C
Operating Temperature Max
150°C
Transistor Case Style
TO-220
Collector Emitter Voltage Max
50 V
Power Dissipation
40 W
DC Current Gain hFE
30 hFE
Transition Frequency
10 MHz
DC Collector Current
7A
Collector Emitter Saturation Voltage Vce(on)
3.5 V
Current Ic hFE
2.5 A
Voltage Vcbo
60 V
Gain Bandwidth ft Min
10 MHz
Gain Bandwidth ft Typ
10 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
PNP
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
50 V
This spec is not available in the specification table.
Deskripsi Produk
Rp 13.732
Lead time diperlukan 5 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
Kuantitas:
/ EA
