POWERFUL 6.5 AMP MOTOR ENGINEERED TO PROVIDE ACCURATE CUTS IN A VARIETY OF MATERIALS
6.5 AMP Motor and 3 Orbital Settings Plus Straight Cutting Deliver. Faster and More Accurate Cuts in a Variety of Materials
Variable Speed Control Dial (500 - 3,100 SPM) Enables User to Match the Speed to the Application
Through-the-Body Dust Port for Use with a Vacuum Provides Efficient Dust Management
Counterbalance System for Reduced Vibration
“Tool-less”Blade Change System for Fast Blade Installation and Removal
Low Profile Design Engineered for Improved Handling in Compact Areas
Well-balance design (only 5.2 lbs.) for reduced operator fatigue
Die-cast aluminum housing base for added durability
Built-in dust blower clears the line of cut for increased accuracy
Ergonomic rubberized grip and 2-finger trigger for increased comfort
Die-cast aluminum base adjusts from 0° - 45° right or left
Lock-on button for continuous operation
Uses Tang shank blades

STANDARD EQUIPMENT
Blade (792529-7)
Wrench (783201-2)
Tool case (824998-5)

SPECIFICATIONS
Length of stroke: 7/8"
Capacities: Wood 3-1/2"
Steel 3/8"
Strokes per minute: 500 – 3,100
AMPS: (120V) 6.5
Overall length: 23cm
Net weight: 2.5kg
Shipping weight: 4.2kg
UPC Code: 088381-620314



POWERFUL 6.5 AMP MOTOR ENGINEERED TO PROVIDE ACCURATE CUTS IN A VARIETY OF MATERIALS 6.5 AMP Motor and 3 Orbital Settings Plus Straight Cutting Deliver. Faster and More Accurate Cuts in a Variety of Materials Variable Speed Control Dial (500 - 3,100 SPM) Enables User to Match the Speed to the Application Through-the-Body Dust Port for Use with a Vacuum Provides Efficient Dust Management Counterbalance System for Reduced Vibration “Tool-less”Blade Change System for Fast Blade Installation and Removal Low Profile Design Engineered for Improved Handling in Compact Areas Well-balance design (only 5.2 lbs.) for reduced operator fatigue Die-cast aluminum housing base for added durability Built-in dust blower clears the line of cut for increased accuracy Ergonomic rubberized grip and 2-finger trigger for increased comfort Die-cast aluminum base adjusts from 0° - 45° right or left Lock-on button for continuous operation Uses Tang shank blades STANDARD EQUIPMENT Blade (792529-7) Wrench (783201-2) Tool case (824998-5) SPECIFICATIONS Length of stroke: 7/8&quot; Capacities: Wood 3-1/2&quot; Steel 3/8&quot; Strokes per minute: 500 – 3,100 AMPS: (120V) 6.5 Overall length: 23cm Net weight: 2.5kg Shipping weight: 4.2kg UPC Code: 088381-620314

POWERFUL 6.5 AMP MOTOR ENGINEERED TO PROVIDE ACCURATE CUTS IN A VARIETY OF MATERIALS
6.5 AMP Motor and 3 Orbital Settings Plus Straight Cutting Deliver. Faster and More Accurate Cuts in a Variety of Materials
Variable Speed Control Dial (500 - 3,100 SPM) Enables User to Match the Speed to the Application
Through-the-Body Dust Port for Use with a Vacuum Provides Efficient Dust Management
Counterbalance System for Reduced Vibration
“Tool-less”Blade Change System for Fast Blade Installation and Removal
Low Profile Design Engineered for Improved Handling in Compact Areas
Well-balance design (only 5.2 lbs.) for reduced operator fatigue
Die-cast aluminum housing base for added durability
Built-in dust blower clears the line of cut for increased accuracy
Ergonomic rubberized grip and 2-finger trigger for increased comfort
Die-cast aluminum base adjusts from 0° - 45° right or left
Lock-on button for continuous operation
Uses Tang shank blades

STANDARD EQUIPMENT
Blade (792529-7)
Wrench (783201-2)
Tool case (824998-5)

SPECIFICATIONS
Length of stroke: 7/8"
Capacities: Wood 3-1/2"
Steel 3/8"
Strokes per minute: 500 – 3,100
AMPS: (120V) 6.5
Overall length: 23cm
Net weight: 2.5kg
Shipping weight: 4.2kg
UPC Code: 088381-620314

Wood

Steel

Input

Length of stroke

Strokes per minute

Dimensions (L x W x H)

Net weight

Power supply cord

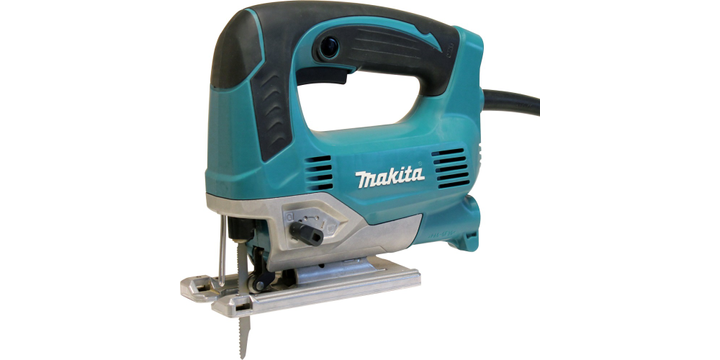

Makita JV0600K Jigsaw (b Type), 650W

makita jv0600k jigsaw (b type), 650w (tipe b), power saws gergaji listrik (jenis kuasa makita/牧田 曲线锯（b 型），650w 动力锯 牧田

makita-jv0600k-jigsaw-b-type-650w

Merek:	MAKITA
Model:	JV0600K
