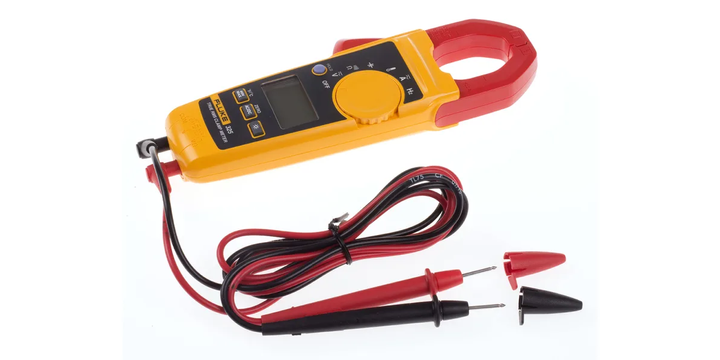

Fluke 325 Clamp Meter, 400A Dc, Max Current 400A Ac Cat Iii 600V

 Absolute Maximum AC Current Measurement	400A ac

Absolute Maximum DC Current Measurement	400A dc

Absolute Maximum AC Voltage Measurement	600V ac

Absolute Maximum DC Voltage Measurement	600V dc

Absolute Maximum Resistance Measurement	40kΩ

Best DC Current Accuracy	±(2% rdg +5 Digits)

Best AC Current Accuracy	±(2% rdg +5 Digits)

Best AC Voltage Accuracy	±(1.5% rdg +5 Digits)

Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature

Best DC Voltage Accuracy	±(1% rdg +5 Digits)

Temperature Measurement Resolution	0.1°C

Absolute Maximum Temperature Measurement	+400°C

AC Current Measurement Range	40 → 400 A ac

Safety Category	CAT III 600 V, CAT IV 300V

Best Resistance Measurement Accuracy	1.0 % ± 5 Digits

DC Current Measurement Range	40 → 400 A dc

• Large backlit display for clear measurement readings in most light conditions
• Light weight of 283g makes it easy to carry around in the field
• Cuts down on toolbox clutter as you can use one tool to carry out most frontline tasks

• Research and testing facilities
• Commercial buildings
• Electrical engineering
• Construction sites

<h3 class="md-block-header-three">Fluke 325 Clamp Meter, 400A Dc, Max Current 400A Ac Cat Iii 600V</h3><ul class="md-block-unordered-list-item"><li> Absolute Maximum AC Current Measurement	400A ac</li><li>Absolute Maximum DC Current Measurement	400A dc</li><li>Absolute Maximum AC Voltage Measurement	600V ac</li><li>Absolute Maximum DC Voltage Measurement	600V dc</li><li>Absolute Maximum Resistance Measurement	40kΩ</li><li>Model Number	325</li><li>AC Current Measurement Resolution	10mA</li><li>DC Current Measurement Resolution	10mA</li><li>Best DC Current Accuracy	±(2% rdg +5 Digits)</li><li>Clamp Meter Type	AC/DC Clamp Meter</li><li>Best AC Current Accuracy	±(2% rdg +5 Digits)</li><li>Best AC Voltage Accuracy	±(1.5% rdg +5 Digits)</li><li>Jaw Capacity Busbars	30mm</li><li>Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature</li><li>True RMS	Yes</li><li>Best DC Voltage Accuracy	±(1% rdg +5 Digits)</li><li>DC Voltage Measurement Resolution	100mV</li><li>Width	75mm</li><li>Resistance Measurement Resolution	100mΩ</li><li>Maximum Operating Temperature	+50°C</li><li>AC Voltage Measurement Resolution	100mV</li><li>Temperature Measurement Resolution	0.1°C</li><li>Absolute Maximum Temperature Measurement	+400°C</li><li>AC Voltage Measurement Range	600 V ac</li><li>Height	34mm</li><li>AC Current Measurement Range	40 → 400 A ac</li><li>Weight	283g</li><li>Safety Category Level	CAT III, CAT IV</li><li>Minimum Operating Temperature	-10°C</li><li>Maximum Conductor Size	30mm</li><li>Safety Category Voltage	300 V, 600V</li><li>Battery Type	AAA</li><li>Dimensions	207 x 75 x 34mm</li><li>Safety Category	CAT III 600 V, CAT IV 300V</li><li>Best Resistance Measurement Accuracy	1.0 % ± 5 Digits</li><li>Display Type	LCD</li><li>Power Source	Battery</li><li>Length	207mm</li><li>DC Current Measurement Range	40 → 400 A dc</li></ul>Fluke 325 Features &amp; Benefits• Large backlit display for clear measurement readings in most light conditions • Light weight of 283g makes it easy to carry around in the field • Cuts down on toolbox clutter as you can use one tool to carry out most frontline tasksApplications• Research and testing facilities • Commercial buildings • Electrical engineering • Construction sites

<h3>Fluke 325 Clamp Meter, 400A Dc, Max Current 400A Ac Cat Iii 600V</h3>
<ul>
<li>&nbsp;Absolute Maximum AC Current Measurement	400A ac</li>
<li>Absolute Maximum DC Current Measurement	400A dc</li>
<li>Absolute Maximum AC Voltage Measurement	600V ac</li>
<li>Absolute Maximum DC Voltage Measurement	600V dc</li>
<li>Absolute Maximum Resistance Measurement	40kΩ</li>
<li>Model Number	325</li>
<li>AC Current Measurement Resolution	10mA</li>
<li>DC Current Measurement Resolution	10mA</li>
<li>Best DC Current Accuracy	±(2% rdg +5 Digits)</li>
<li>Clamp Meter Type	AC/DC Clamp Meter</li>
<li>Best AC Current Accuracy	±(2% rdg +5 Digits)</li>
<li>Best AC Voltage Accuracy	±(1.5% rdg +5 Digits)</li>
<li>Jaw Capacity Busbars	30mm</li>
<li>Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature</li>
<li>True RMS	Yes</li>
<li>Best DC Voltage Accuracy	±(1% rdg +5 Digits)</li>
<li>DC Voltage Measurement Resolution	100mV</li>
<li>Width	75mm</li>
<li>Resistance Measurement Resolution	100mΩ</li>
<li>Maximum Operating Temperature	+50°C</li>
<li>AC Voltage Measurement Resolution	100mV</li>
<li>Temperature Measurement Resolution	0.1°C</li>
<li>Absolute Maximum Temperature Measurement	+400°C</li>
<li>AC Voltage Measurement Range	600 V ac</li>
<li>Height	34mm</li>
<li>AC Current Measurement Range	40 → 400 A ac</li>
<li>Weight	283g</li>
<li>Safety Category Level	CAT III, CAT IV</li>
<li>Minimum Operating Temperature	-10°C</li>
<li>Maximum Conductor Size	30mm</li>
<li>Safety Category Voltage	300 V, 600V</li>
<li>Battery Type	AAA</li>
<li>Dimensions	207 x 75 x 34mm</li>
<li>Safety Category	CAT III 600 V, CAT IV 300V</li>
<li>Best Resistance Measurement Accuracy	1.0 % ± 5 Digits</li>
<li>Display Type	LCD</li>
<li>Power Source	Battery</li>
<li>Length	207mm</li>
<li>DC Current Measurement Range	40 → 400 A dc</li>
</ul>
Fluke 325 Features &amp; Benefits
• Large backlit display for clear measurement readings in most light conditions
• Light weight of 283g makes it easy to carry around in the field
• Cuts down on toolbox clutter as you can use one tool to carry out most frontline tasks
Applications
• Research and testing facilities
• Commercial buildings
• Electrical engineering
• Construction sites&nbsp;

Merek:	FLUKE
Model:	325

Clamp Meter Fluke 325, 400A DC, Arus Maksimum 400A AC Cat III 600V
