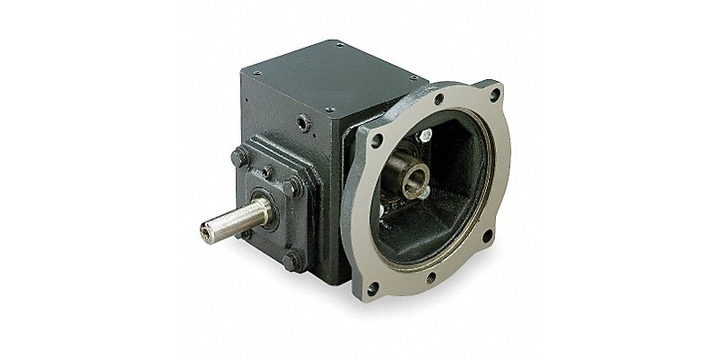

Pengurang Kecepatan Dayton 4Z300 C-Face 56C 60 1

DAYTON

View Brand

Pengurang Kecepatan Dayton 4Z300 C-Face 56C 60 1

Merek:	DAYTON
Model:	4Z300

Specifications

View other Gearboxes dimensions or variations

Worm Center Distance

2.06 in

Output Shaft Type

Keyed

Input Drive Type

Direct Drive

Gear Ratio

60:1

Overhung Load Capacity

875 ft-lb

Maximum Output Torque

636 in-lb

Gear Type

Worm

Maximum Input Horsepower

0.5 hp

Motor Frame Designation

56C

Nameplate Speed Range

16 to 30 RPM

Mounting Orientation

Any Position Except Input Motor Shaft Up

Deskripsi Produk

Rp 16.863.498

Unit	Diskon	Harga Satuan
1	-	Rp 16.863.498

Kuantitas:

Lead time diperlukan 12 hari kerja.

Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
