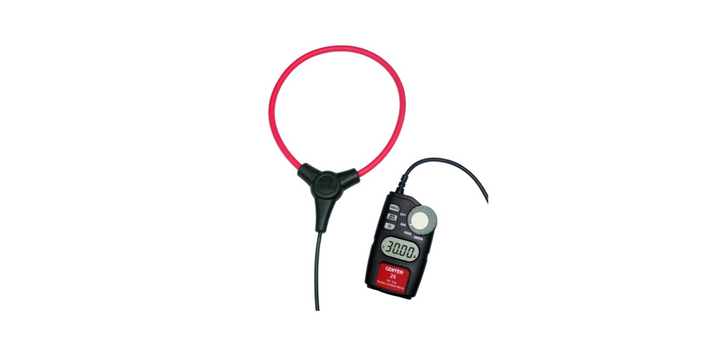

Center 26_18 Flexible Ac Clamp Meter (18″ Coil)

Output Resolution (LCD Display): 0.01A/0.1A/1A

8.5mm coil diameter allows measurement in tight spaces (Double insulated)

18” flexible sensor fit around conductors up to 5.8”in diameter

30A/300A/3000A : 0.01A/0.1A/1A : ±3%rdg ± 5dgts

Display: 4 digital Liquid display, Maximum reading 3150

Probe Cable Length: 10″ (254mm); 18″ (458mm)

<h3 class="md-block-header-three">Center 26_18 Flexible Ac Clamp Meter (18″ Coil) </h3><ul class="md-block-unordered-list-item"><li>Measurement Ranges: 30A/300A/3000A AC</li><li>Output Resolution (LCD Display): 0.01A/0.1A/1A</li><li>8.5mm coil diameter allows measurement in tight spaces (Double insulated)</li><li>18” flexible sensor fit around conductors up to 5.8”in diameter</li><li>TRMS Reading </li></ul>Specifications:<ul class="md-block-unordered-list-item"><li>Range:</li><ul class="md-block-unordered-list-item"><li>30A/300A/3000A : 0.01A/0.1A/1A : ±3%rdg ± 5dgts</li></ul><li>Frequency Range: 45~500Hz</li><li>Phase Error: &lt; ±1°</li><li>Position Sensitivity: ±3%</li><li>Display: 4 digital Liquid display, Maximum reading 3150</li><li>Sampling Rate: 2 times/sec</li><li>Battery: 1.5V, size AAA battery x 2</li><li>Probe Cable Length: 10″ (254mm); 18″ (458mm)</li><li>Dimensions (Meter): 120 x 70 x 26 mm</li><li>Weight: approx. 286g</li></ul>

<h3>Center 26_18 Flexible Ac Clamp Meter (18″ Coil)&nbsp;</h3>
<ul>
<li>Measurement Ranges: 30A/300A/3000A AC</li>
<li>Output Resolution (LCD Display): 0.01A/0.1A/1A</li>
<li>8.5mm coil diameter allows measurement in tight spaces (Double insulated)</li>
<li>18” flexible sensor fit around conductors up to 5.8”in diameter</li>
<li>TRMS Reading&nbsp;</li>
</ul>
Specifications:
<ul>
<li>Range:</li>
<ul>
<li>30A/300A/3000A : 0.01A/0.1A/1A : ±3%rdg ± 5dgts</li>
</ul>
<li>Frequency Range: 45~500Hz</li>
<li>Phase Error: &lt; ±1°</li>
<li>Position Sensitivity: ±3%</li>
<li>Display: 4 digital Liquid display, Maximum reading 3150</li>
<li>Sampling Rate: 2 times/sec</li>
<li>Battery: 1.5V, size AAA battery x 2</li>
<li>Probe Cable Length: 10″ (254mm); 18″ (458mm)</li>
<li>Dimensions (Meter): 120 x 70 x 26 mm</li>
<li>Weight: approx. 286g</li>
</ul>

Merek:	Center
Model:	26_18

Pusat 26_18 Meteran Klem Ac Fleksibel (18″ Coil)
