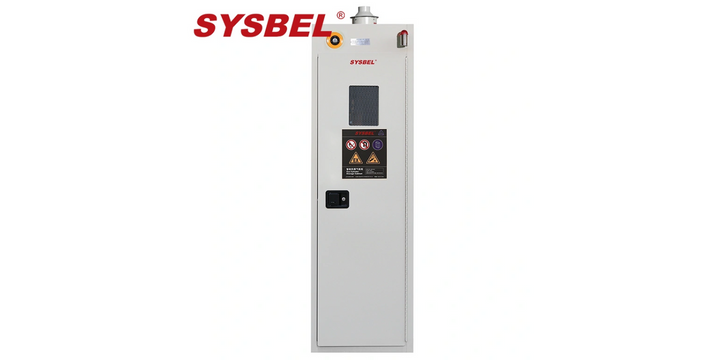

Sysbel WA740101F Single bottle intelligent fireproof and explosion-proof gas cylinder cabinet (with built-in exhaust)

• Name: Single Bottle Type Intelligent Fireproof and Explosion-Proof Gas Cylinder Cabinet

• Certification: Ex Explosion-Proof

• Door Type: Single Door / Manual

• Overall Dimensions (H x W x D/cm): 208 x 60 x 50

• Packing Size (H x W x D/cm): 215 x 68 x 63

• Explosion-Proof Fan: Built-in Exhaust

• External Air Outlet Diameter (cm): 7.5

• Material: 1.2mm Double-Layer Galvanized Steel Sheet

• Explosion-Proof Grade:

• Ex d mb IIC T6 Gb

• Ex d IIB T4 Gb (Explosion-Proof Fans)

• Net Weight (Kgs.): 71

SYSBEL intelligent fireproof and explosion-proof gas cylinder cabinet is designed and manufactured according to FM 6050 GB 3836.1-2010 GB 3836.2-2010 GB3836.4-2010, and has passed the inspection of the national instrument explosion-proof safety supervision and inspection station, and obtained the explosion-proof certificate for the whole cabinet, explosion-proof certificate number: GYB21.3799X.

SYSBEL intelligent fireproof and explosion-proof gas cylinder cabinet is a steel structure cabinet, which is solid and durable. It is suitable for storing 40L 10L 8L 4L standard gas cylinders. It is equipped with explosion-proof point-type combustible gas detectors, explosion-proof sound and light alarms, explosion-proof junction boxes, explosion-proof axial flow fans, gas supply panel systems (optional), etc., which effectively prevents the risks caused by accidental gas leakage and provides a safe and reliable solution for the storage of gas cylinders.

1. Passed national certification and testing, reaching the highest level of explosion-proof for the entire cabinet (certificate number: GYB21.3799X) standard EX d mb IIC T6 Gb
2. Manufactured according to FM6050 standard, double-layer steel structure cabinet, better fireproof, acid and alkali proof, and rust proof
3. The three exhaust holes at the top, middle and bottom are conducive to the discharge of gases of various densities
4. Optional semi-automatic switching pressure reducing valve group (gas supply panel) to achieve direct gas supply without moving the gas cylinder
5. Standard external air outlet valve, which can be automatically closed when the ambient temperature reaches 70℃ to block the fire source
