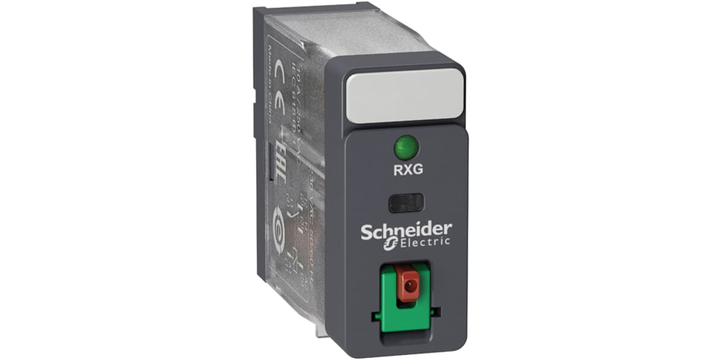

Schneider Electric RXG22B7 Plug in Power Relay, 24V Ac Coil, 5A Switching Current, Dpdt
Schneider Electric RXG22B7 Plug in Power Relay, 24V Ac Coil, 5A Switching Current, Dpdt
| Brand: | SCHNEIDER ELECTRIC |
| Model: | RXG22B7 |
Specifications
Please select at least one specification below.
Mounting Type
Plug In
Number of Poles
2
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
24 V ac
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
70°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V
Coil Power
820 mW
Coil Resistance
260 Ω
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
150 W
Switching Current
5 A
Maximum Switching Power AC
1.25 kVA
Length
13 mm
This spec is not available in the specification table.
Application
Interface
This spec is not available in the specification table.
Depth
30.6 mm
This spec is not available in the specification table.
Height
37.1 mm
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RXG
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
₱ 758.76
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 758.76 |
