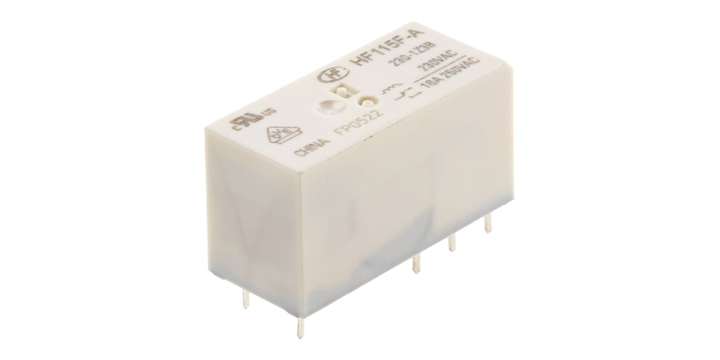

Rs Pro 8004473P Pcb Mount Power Relay, 230V Ac Coil, 16A Switching Current, Spdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
29 mm
Application
Power
Mounting Type
PCB Mount
Depth
12.7 mm
Height
15.7 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
230 V ac
Standards Met
CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
440 V ac
Maximum Switching Voltage DC
300 V dc
Coil Power
750 mW
Coil Resistance
32500 Ohm
Isolation Coil To Contact
5 kV ac
Switching Current
16 A
Maximum Switching Power AC
2 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
1000000 (Mechanical) Operations, 50000 (Electrical) Operations
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
₱ 10,829
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 541 |
Quantity:
EA
MOQ of 20 EA
Bundle of 1 EA
