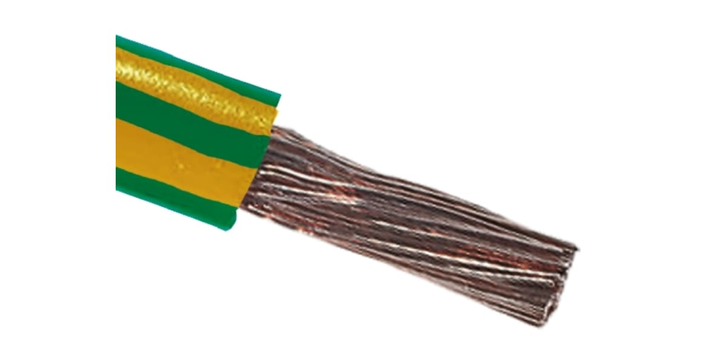

Rs Pro 6285465 Green/Yellow 25 Mm² Hook up Wire, 4 Awg, 196/0.4 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
136 A
Voltage Rating
600 V
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1283
Sheath Colour
Green/Yellow
Insulation Material
PVC
American Wire Gauge
4 AWG
Maximum Operating Temperature
+105°C
Outer Diameter
10.6 mm
Number of Strands
196
Size of Strands
0.4 mm
Conductor Material
Annealed Copper
Core Strands
196/0.4 mm
Cable Shape
Single Core
Insulation Wall Thickness
1.6 mm
Product Description
₱ 62,783
Quantity:
EA
