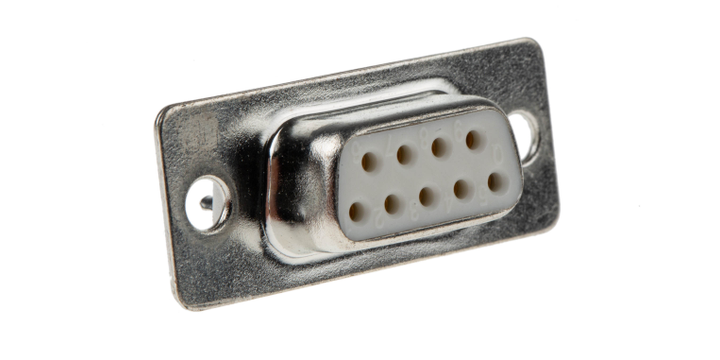

Rs Pro 5443749 9 Way Panel Mount D-sub Connector Socket, 2.8mm Pitch
Specifications
Please select at least one specification below.
Length
31 mm
Pitch
2.8 mm
Current Rating
5 A
Mounting Type
Panel Mount
Depth
12.5 mm
Voltage Rating
500 V ac
Gender
Female
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
105°C
Number of Contacts
9
D Connector Type
Standard D-Sub
D-Sub Shell Size
E
Housing Material
Steel
Contact Material
Phosphor Bronze
Dimensions
31 x 11 x 12.5 mm
This spec is not available in the specification table.
Product Description
₱ 584
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | ₱ 117 |
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
